Product Overview
This Heavy Duty sound deadening mat features a jet black aluminum top finish, making it an ideal choice for classic and vintage vehicles, or installations where the mat may be visible. This mat is designed to be 50% thicker than standard options, providing enhanced vibrodamping performance.
Key Features
- 3mm thickness for effective sound absorption
- Polymeric based damping material with high-performance adhesive
- Aluminum surface for durability and flexibility
- Special deep tension anti-resonance top for maximum effectiveness
- Sheet size: 375 x 250 mm (14.76 x 9.84 inches)
- Weight: 4 kg/sq.m
Bulk Pack Details
Each pack contains 30 sheets, covering a total area of 30 sq.ft (approximately 2.79 sq.m).
Typical Uses

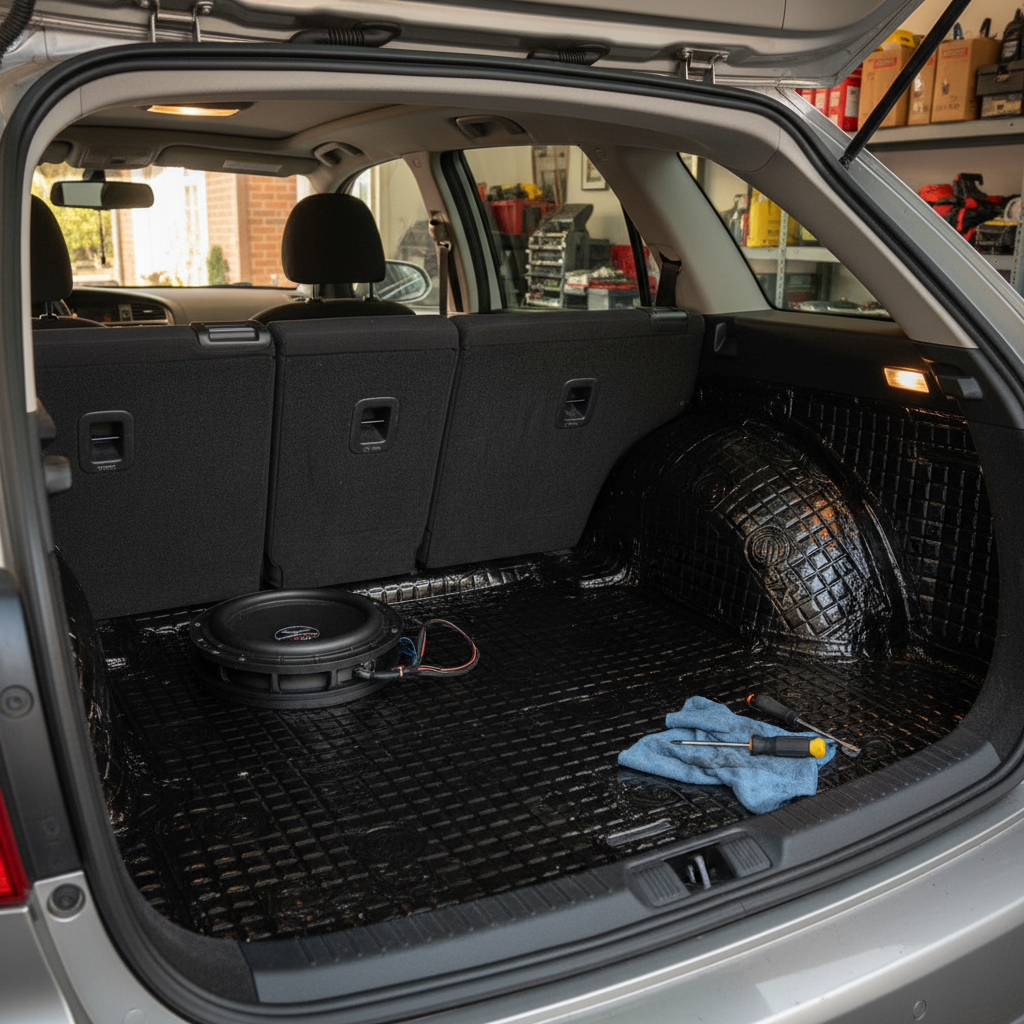

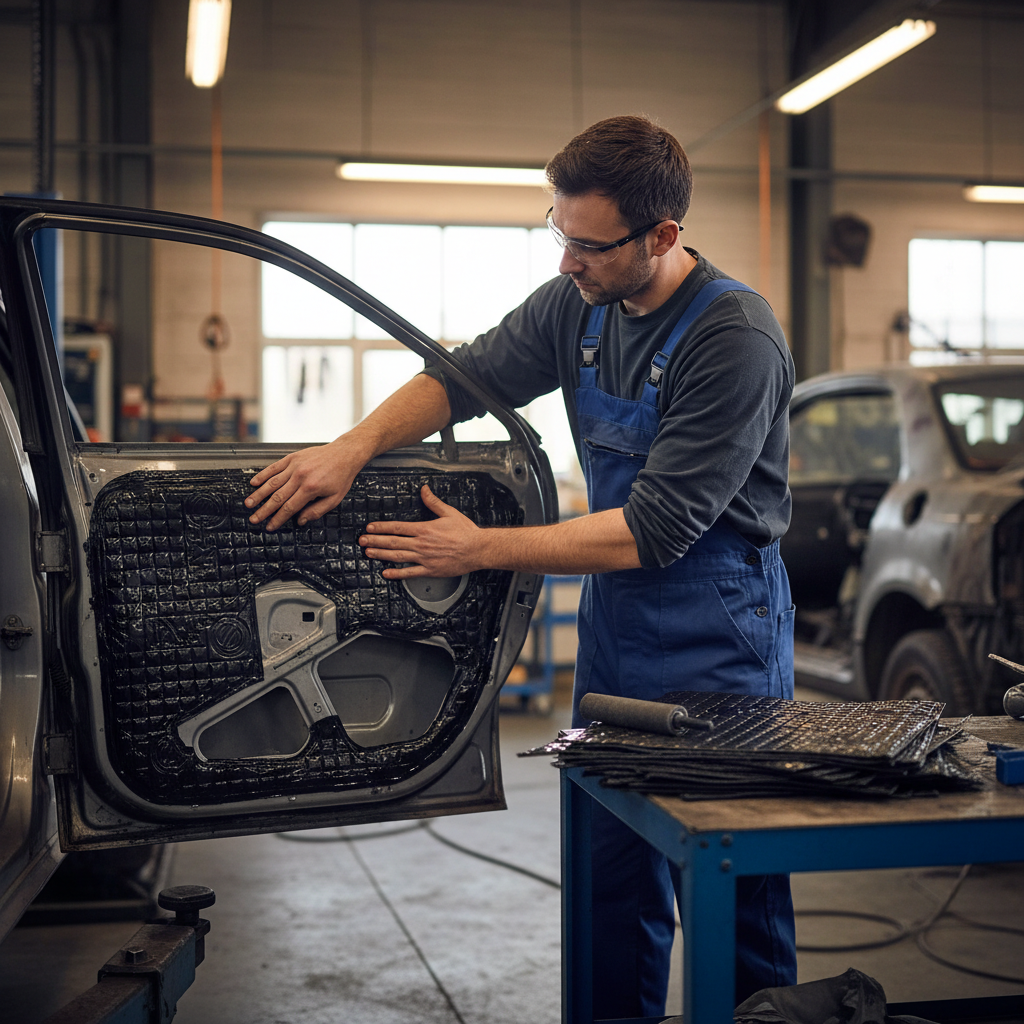

- Fitting to a vehicle's internal metal panels to absorb vibrations, rattles, and road noise.
- Lining metal panels, cabinets, sinks, and home appliances to prevent noise and vibrations.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Thickness | 3mm |
| Sheet Size | 375 x 250 mm |
| Weight | 4 kg/sq.m |
FAQ
-
Can this mat be used in areas with high moisture?
It is recommended to use the mat in dry areas for optimal performance. -
Is it easy to install?
Yes, the mat is flexible and adheres well to contoured surfaces. -
Will it completely eliminate noise?
While it significantly reduces noise, it may not eliminate it entirely.
Trusted by leading organisations
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | CLD Deadening Mat |
| SKU | D_SPS33 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
Shipping
- Express shipping on all UK orders
- Same day dispatch on orders placed before 2pm (Mon-Fri)
- 1-3 working days delivery via express courier
- Full tracking provided via email
Returns
- 14-day returns on unused, unopened products
- Products must be in original packaging
- Contact us before returning: sales@soundproofingshop.co.uk
- Refunds processed within 3-5 working days
For damaged or faulty items, contact us immediately — we'll arrange a free replacement or full refund.
Frequently Asked Questions
Everything you need to know about sound deadening
How much sound deadening material do I need?
Coverage depends on your vehicle and goals. For basic noise reduction, cover 25-40% of each panel. For maximum results (audio builds, full insulation), aim for 60-80% coverage. Our team can advise on exact quantities for your vehicle — just get in touch.
Can I install sound deadening myself?
Absolutely. All our products are designed for DIY installation with peel-and-stick application. You'll need basic tools — a roller, utility knife, and clean surface. Most door panels take 30-60 minutes. We include installation tips with every order.
What's the difference between CLD, CCF and MLV?
CLD (Constrained Layer Damping) mats reduce vibration and panel resonance — the foundation layer. CCF (Closed Cell Foam) blocks airborne noise and adds thermal insulation. MLV (Mass Loaded Vinyl) is a dense barrier that blocks sound transmission. For best results, use all three in layers.
Do you offer trade or bulk discounts?
Yes! We offer competitive pricing for trade customers, van conversion businesses, and bulk buyers. Contact us with your requirements for a custom quote. Bundle deals are also available on our website.
How fast is delivery?
Orders placed before 2pm ship same day. Standard UK delivery is 1-3 working days. Express next-day delivery is available at checkout. We ship nationwide across the UK.
Can I return products if they're not suitable?
Yes, we offer a 14-day return policy on unused, unopened products in original packaging. Please contact our team to arrange a return. Custom-cut items are non-returnable.
Need Help Choosing the Right Product?
Our sound deadening experts are here to help. Whether you're doing a full van build or a simple door upgrade, we'll recommend the perfect solution for your project.
