Product Overview
This Premium Campervan Sound Deadening and Insulation Kit is designed to transform your campervan into a more comfortable and quieter environment. Many campervan projects start with limited luxury, but by applying sound deadening and insulation, you can significantly improve the rear cabin area.
Kit Components
This comprehensive kit includes:
- 1 x Premium Sound Deadening Hex 50 Pack (4.7sq.m)
- 1 x Premium Thermo Liner 10m Roll (10sq.m)
Benefits

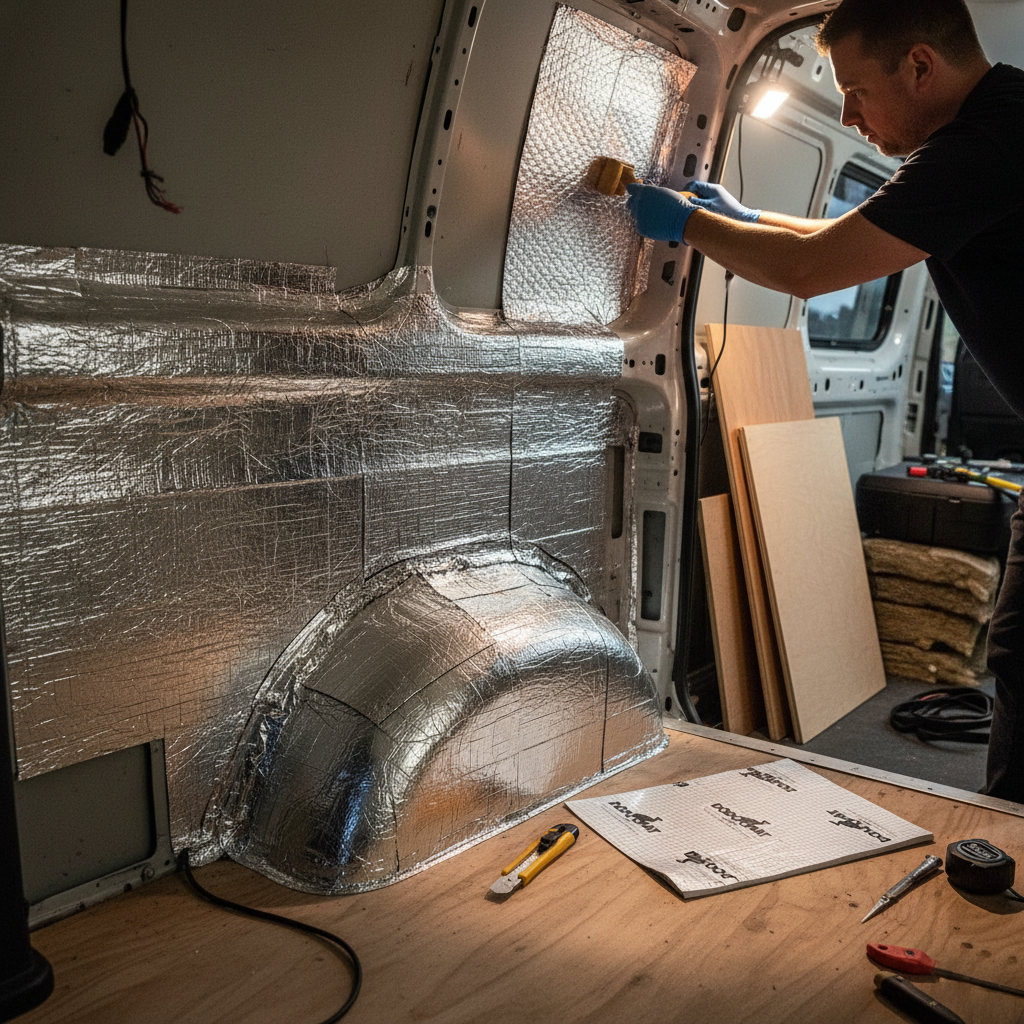

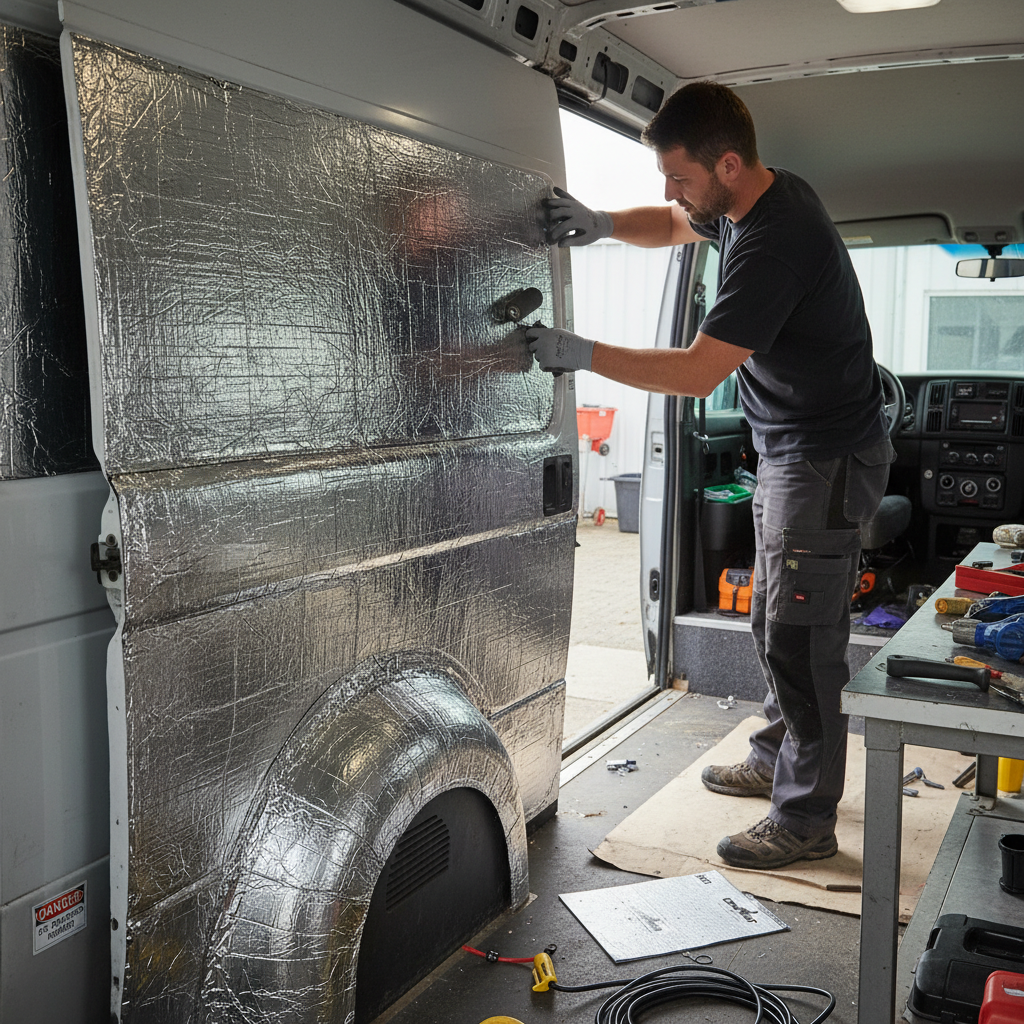

The sound deadening mat is applied first at approximately a 50% coverage ratio to all single skin steel areas such as the side panels, wheel arches, and doors. This simple peel & stick application is effective in reducing noise. A typical campervan will require one Bulk 50 sheet (4.7sq.m) pack of sound deadening for these areas.
To complete the installation, add a secondary layer of Premium Thermo Liner to the sides and floor/roof. This product helps regulate internal temperatures, keeping your campervan cooler in summer and warmer in winter. The dense closed cell foam layer works in harmony with the sound deadening layer to enhance sound proofing.
Features of Premium Sound Deadening Hex
- Makes Van Panels as Dead as a Dodo!
- High Grade Butyl Construction
- Hex Embossed Design
- Aluminium Silver Finish
- Soft & Flexible for Easy Installation
- 1.8mm Thickness with Strong Adhesive
- Reduces Rattles, Vibration & Noise
- Minimizes Road, Exhaust, Engine & Transmission Noise
- Heat Resistant from -40°C to +120°C
- Flammability tested for vehicle interiors ISO 3795:1989
- Fully Water & Oil Resistant
- Peel & Stick Application
- Pack Weight: 14.5kg
- Individual Sheet Size: 370 x 250mm
- Bulk Pack: 50 Sheets
- Pack Coverage: 4.7sq.m (50sq.ft)
Features of Premium Thermo Liner
- Latest 2023 "v3" Specification
- Efficient low profile 6mm insulation
- Easy installation - cut, peel & stick
Installation Instructions
All products are designed for easy application. Simply cut or shape with a sharp knife and adhere it to the desired areas. The materials are specifically designed for automotive use, ensuring they are fire safety tested and will not absorb moisture or mold.
Technical Specifications
| Specification | Measurement |
|---|---|
| Thickness | 1.8mm |
| Pack Weight | 14.5kg |
| Sheet Size | 370 x 250mm |
| Coverage | 4.7sq.m (50sq.ft) |
| Insulation Thickness | 6mm |
FAQ
-
Can this kit be used on any campervan model?
Yes, it is suitable for various models including Volkswagen T4/T5/T6, Mercedes Vito, and Ford Transit. -
How effective is the sound deadening?
The sound deadening mat significantly reduces noise from road, exhaust, and engine vibrations. -
Is installation difficult?
No, the products are designed for easy peel & stick application and can be cut to size as needed.
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | Product Bundle |
| SKU | D_SPS67 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
Shipping
- Express shipping on all UK orders
- Same day dispatch on orders placed before 2pm (Mon-Fri)
- 1-3 working days delivery via express courier
- Full tracking provided via email
Returns
- 14-day returns on unused, unopened products
- Products must be in original packaging
- Contact us before returning: sales@soundproofingshop.co.uk
- Refunds processed within 3-5 working days
For damaged or faulty items, contact us immediately — we'll arrange a free replacement or full refund.
Frequently Asked Questions
Everything you need to know about sound deadening
How much sound deadening material do I need?
Can I install sound deadening myself?
What's the difference between CLD, CCF and MLV?
Do you offer trade or bulk discounts?
How fast is delivery?
Can I return products if they're not suitable?
Need Help Choosing the Right Product?
Our sound deadening experts are here to help. Whether you're doing a full van build or a simple door upgrade, we'll recommend the perfect solution for your project.
