Product Overview
Most popular vans in the UK start life with very little luxury; however, the load area can be improved dramatically with the application of sound deadening and insulation. Whether used as a workhorse or for weekend getaways, this kit allows you to upgrade your van in a few simple steps.
Kit Components
- 2 x Sound Deadening Mats (9.4 sq.m)
- 2 x Thermal Liner Rolls (20 sq.m)
Advantages
The installation of sound deadening and insulation sheets will significantly enhance the comfort of your van. The final result will yield a quieter ride with improved interior comfort, making your travels more enjoyable.
Installation Process

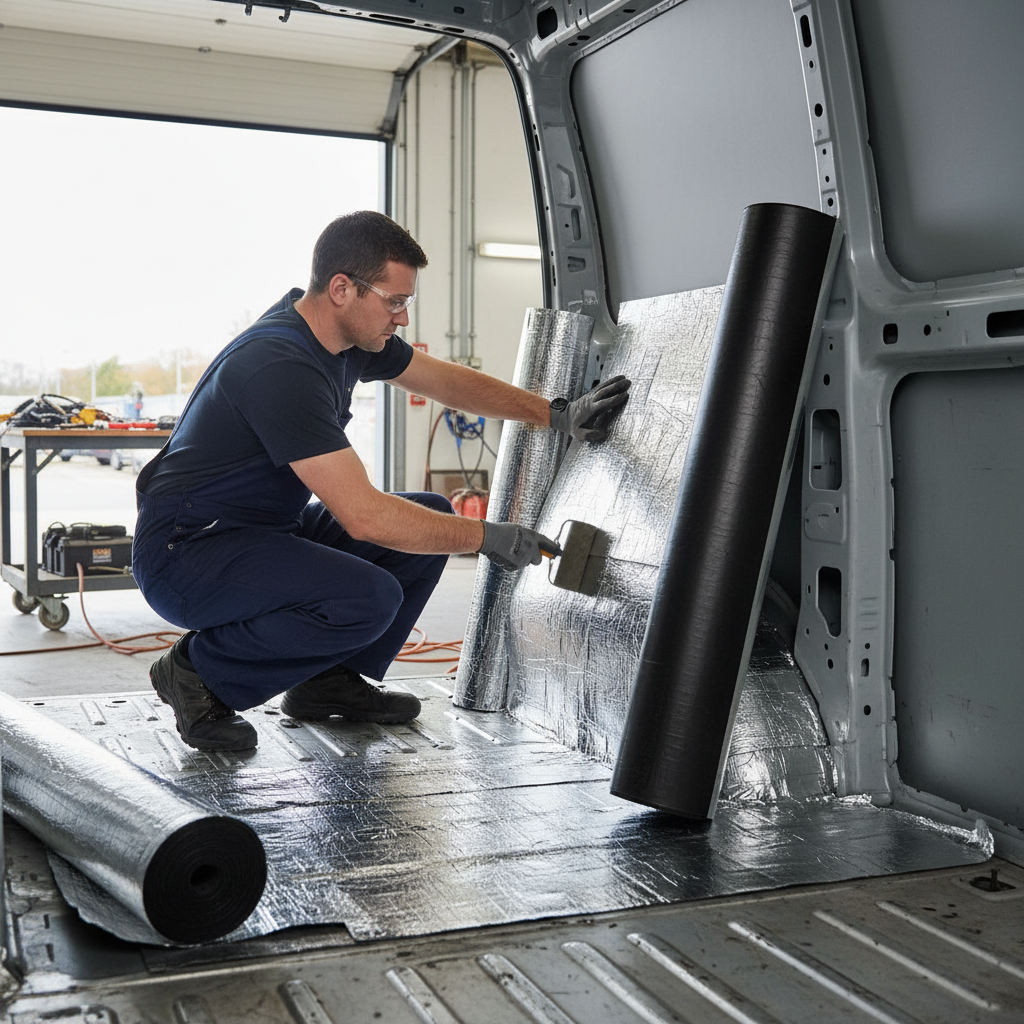

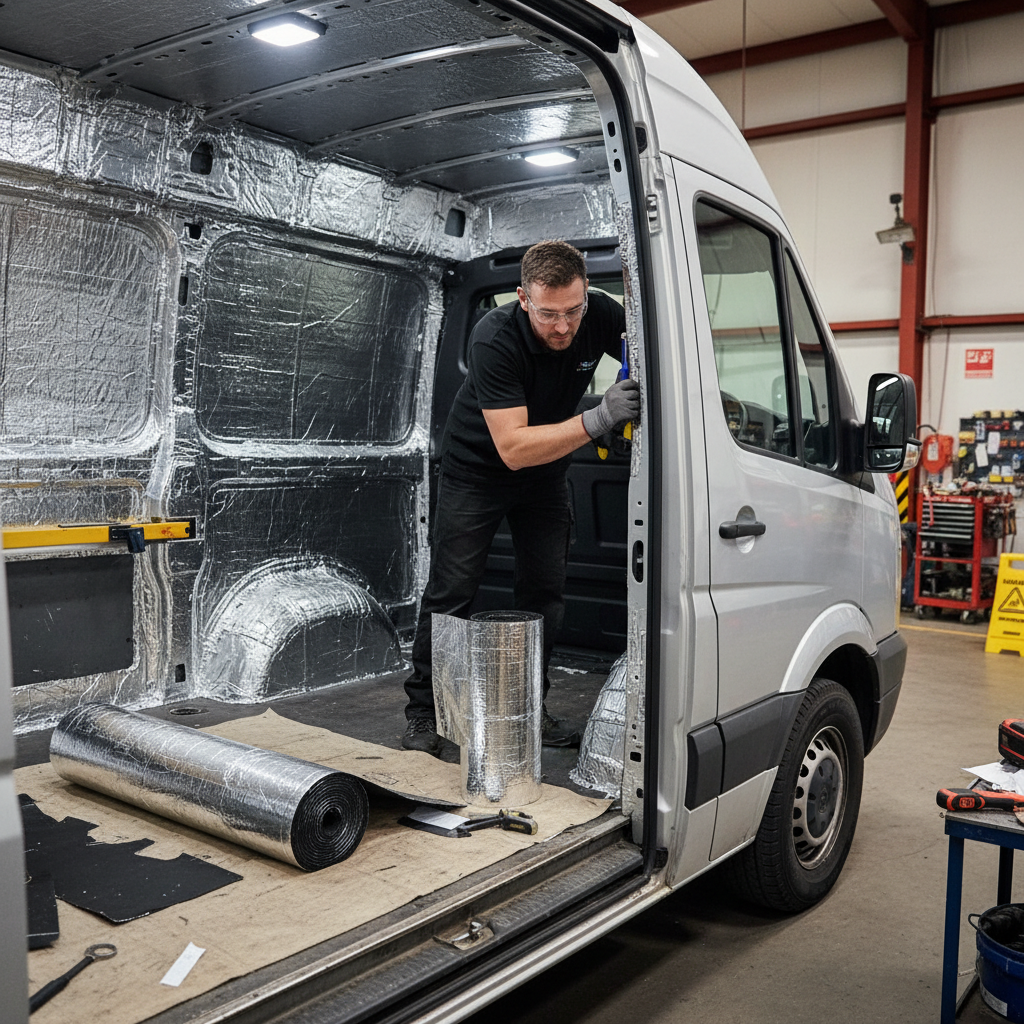

The sound deadening mat is applied first at approximately a 50% coverage ratio to all single skin steel areas, such as side panels, roof, wheel arches, and doors. This is a simple peel & stick application. A large van will typically require about two bulk packs of sound deadening for these areas.
To complete the installation, add a secondary layer of thermal liner to the sides and roof. This product helps regulate temperatures inside the van, keeping it cooler in summer and warmer in winter. The dense closed cell foam layer works in harmony with the sound deadening layer to improve soundproofing even further.
Technical Specifications
- Sound Deadening Mat:
- High Grade Butyl Construction
- Hex Embossed
- Aluminium Silver Finish
- Very Soft & Flexible for Easy Installation
- 1.8mm Thick with Strong Adhesive
- Stops Rattles, Vibration & Noise
- Reduces Road, Exhaust, Engine & Transmission Noise
- Heat Resistant from -40°C to +120°C
- Flammability Tested for Vehicle Interiors
- Fully Water & Oil Resistant
- Peel & Stick Application
- Pack Weight: 14.6kg
- Individual Sheet Size: 370 x 250mm
- Bulk Pack - 50 Sheets
- Pack Coverage: 4.7 sq.m (50 sq.ft)
- Thermal Liner:
- Latest 2023 "v3" Specification
- Efficient Low Profile 6mm Insulation
- Easy Installation - Cut, Peel & Stick
- High Thermal Efficiency
Compatibility
This kit is suitable for a variety of large vans, including:
- Volkswagen T4/T5/T6 LWB
- Fiat Ducato
- Ford Transit LWB
- Mercedes Vito LWB
- Citroen Relay
- Peugeot Boxer
- Vauxhall Movano
Note: Extra large "High Top" LWB & L3 vans may require additional material to cover the increased height/length.
FAQ
-
How do I install the sound deadening mats?
Simply peel off the backing and stick to clean, dry surfaces. -
Can I use the insulation in other vehicles?
Yes, this insulation is versatile and can be used in various automotive applications. -
Is this kit weather-resistant?
Yes, all products are designed to be moisture and mold resistant.
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | Product Bundle |
| SKU | D_SPS71 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
