Product Overview

This unique product offers two essential layers in one simple application! The Premium version is designed as a thicker flooring underlay with a heavier deadening and thicker insulation layer. With soundproofing and insulation combined, this product is perfect for floor and boot areas of the vehicle and will kill vibrations, block noise, and insulate the panels. Simply peel and stick onto the metalwork in one easy application.

Sound Deadening Layer

The Premium sound deadening mat features a 2mm butyl rubber deadening layer to reduce vibration from the panel and act as a barrier to airborne noise. More rubber and less mineral filler means better vibration damping and noise reduction. Placed on the metal floor of any vehicle, this mat will effectively destroy unwanted vibrations and structural noise.

Insulation Layer

The insulation layer features an integral 5mm closed cell foam that has excellent thermal and acoustic properties, ideal for reducing noise and insulating the vehicle. This closed cell foam layer will act as a thermal insulating layer to help stabilize vehicle cabin temperatures throughout the year and reduce the chances of condensation forming.

Convenience

To increase installation convenience, the product is supplied in one continuous 5m roll, perfect for custom work and large floor areas.

Technical Specifications

• Thickness: 7mm (2mm deadening layer + 5mm insulation layer)
• Material: Aluminium and Pure Butyl construction
• Adhesive: Strong adhesive for easy application
• Temperature Resistance: -50°C to +150°C
• Water and Oil Resistance: Fully resistant
• Flammability: Tested for vehicle interiors ISO 3795:1989

Features

• Makes metal panels as dead as possible
• Combines vibrodamping, soundproofing, and insulation
• Soft and flexible, does not require heating for installation
• Stops rattles, vibrations, heat, and noise
• Lowers road, exhaust, engine, and transmission noise

Coverage

• Supplied as a 50cm x 500cm roll
• Coverage area: 2.5 sq.m (26.9 sq.ft)

Typical Uses

• Superb load area underlay for van and camper conversions
• Ideal for lowering road, transmission, and exhaust noise in the front footwell, floor, and boot areas of any vehicle

FAQs

1. How thick is the mat?

The mat has a total thickness of 7mm, comprising a 2mm deadening layer and a 5mm insulation layer.

2. How do I install the mat?

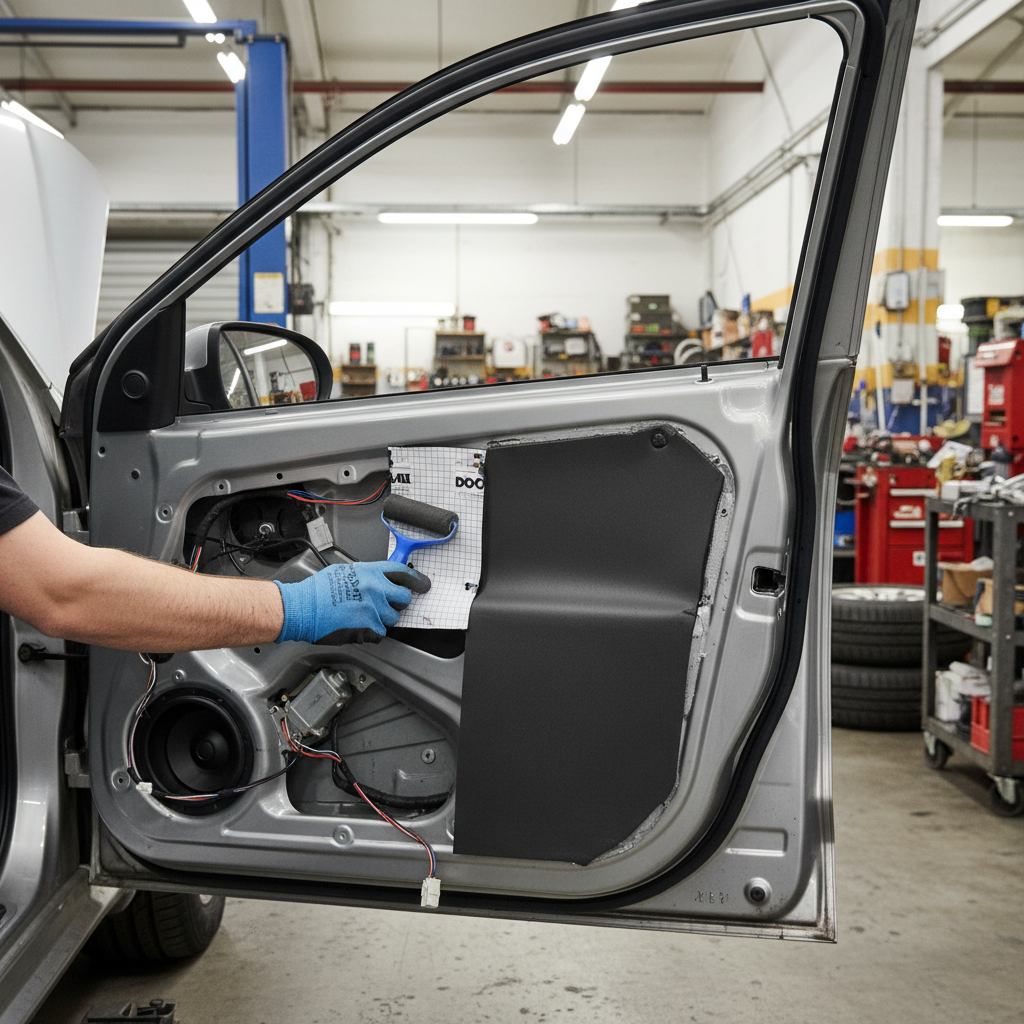

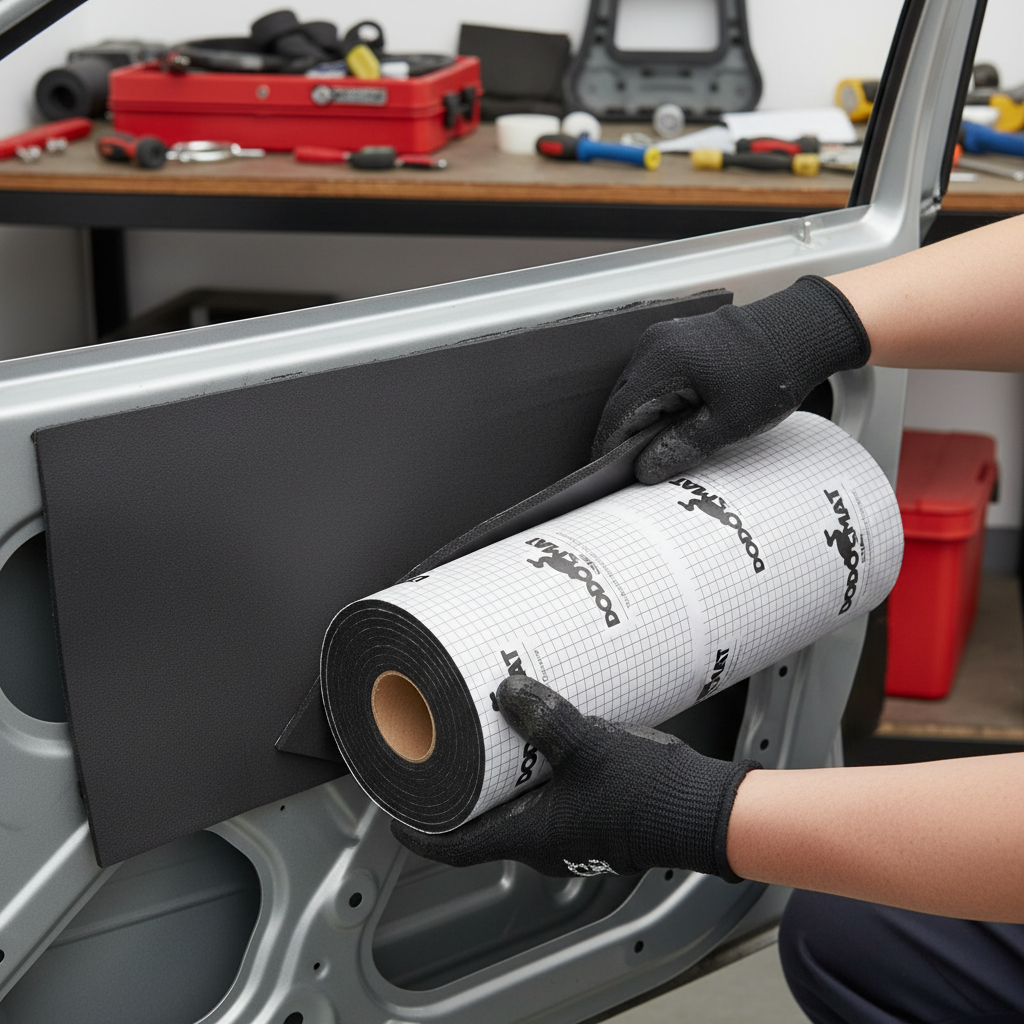

The mat features a peel and stick application, making it easy to install on metal surfaces without the need for additional tools or heating.

3. Can this mat be used in any vehicle?

Yes, it is suitable for use in various vehicles, including vans, campers, and cars, to reduce noise and vibrations.
