Product Overview
This special edition insulation features enhanced glass-fibre-reinforced aluminium for increased performance. This professional 15mm sound and heat insulation material is designed to create a quieter and warmer environment in your van, camper, or motorhome.

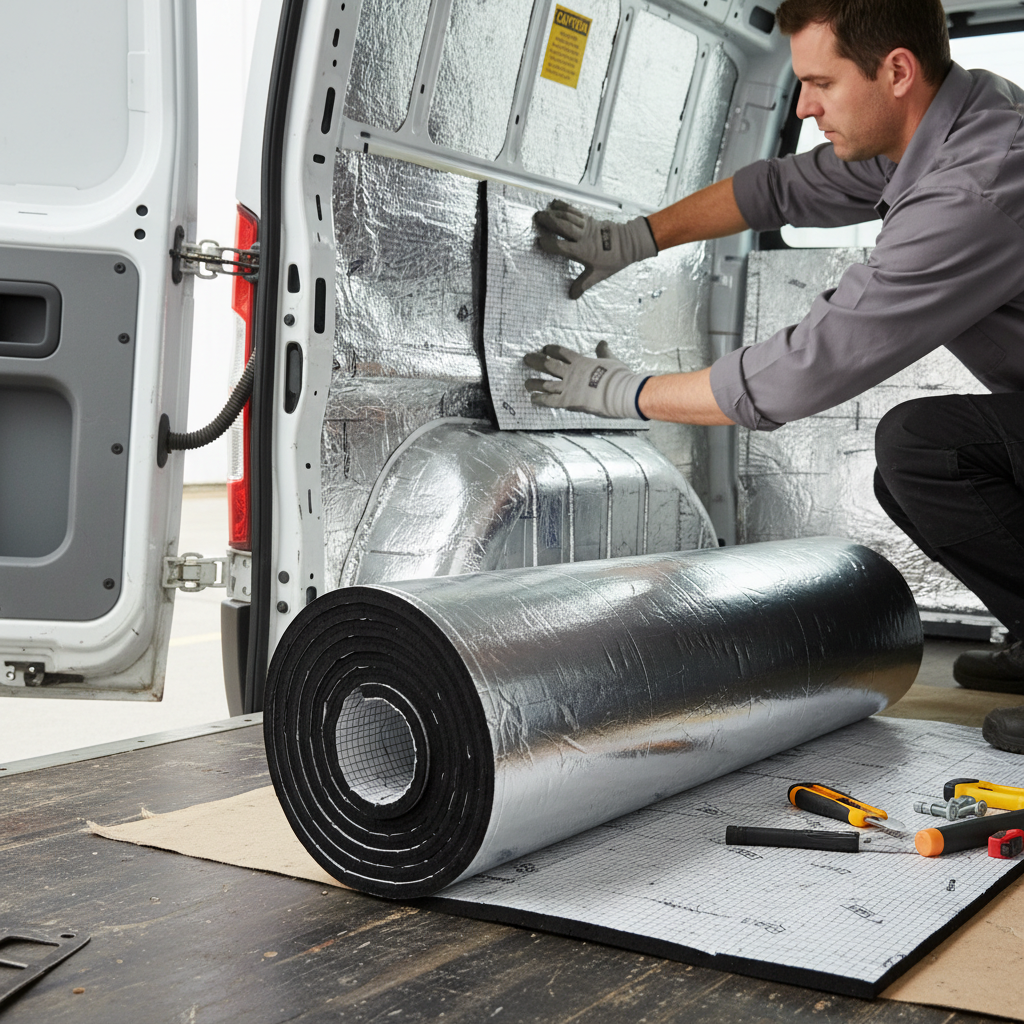

The insulation is made from a high-grade self-adhesive liner, featuring a reinforced aluminium foil combined with extra-soft closed-cell foam. The result is a high-performance, easy-to-install insulation that curves, shapes, and contours to your vehicle, making it ideal for use on van sides, floors, roofs, and more.
Key Features
- Efficient low-profile insulation
- Easy installation - cut, peel & stick
- High thermal efficiency
- Thermal conductivity: 0.033 W/mK
- Significant noise reduction
- Warmer in winter, cooler in summer
- Reduces condensation
- Water-resistant
- Acts as a barrier against heat loss
- High crush resistance
- Improves interior comfort
- Moisture-resistant dense closed-cell foam
- Reinforced aluminium foil
- Strong peel-and-stick self-adhesive
- High-grade construction
- Fire retardant to ISO 3795
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Roll Thickness | 15mm |
| Roll Size | 5m x 1m |
| Total Coverage Area | 5 sq.m |
A single roll (5 sq.m) is ideal for the roof or sides of a typical car, small van, or 4x4. Note that larger vans, such as the VW Transporter, may require 2-3 rolls.
Installation Note: Thicker foams of 12-15mm may require an additional, stronger spray adhesive when bending and shaping around tight curves, ridges, and corners.
Technical Specifications
- Type: Self-adhesive insulation
- Material: Closed-cell foam with reinforced aluminium foil
- Fire Rating: ISO 3795 compliant
- Moisture Resistance: Yes
- Thermal Conductivity: 0.033 W/mK
- Noise Reduction: Significant
FAQ
- What is the thickness of this insulation? The insulation has a thickness of 15mm.
- How do I install this insulation? Simply cut to size, peel off the backing, and stick it in place.
- Is it suitable for larger vans? Yes, larger vans may require multiple rolls for complete coverage.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | CCF Noise Barrier |
| SKU | D_SPS105 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
Shipping
- £9.99 flat-rate shipping on all UK orders
- Dispatched within 1-2 working days (order before 2pm, Mon-Fri)
- 3-6 working days tracked delivery
- Full tracking provided via email
Returns
- 14-day returns on any order, for any reason
- You can open and inspect before you decide
- Contact us before returning: sales@soundproofingshop.co.uk
- Refunds processed within 5 working days
For damaged or faulty items, contact us immediately — we'll arrange a free replacement or full refund.
Frequently Asked Questions
Everything you need to know about sound deadening
How much sound deadening material do I need?
Can I install sound deadening myself?
What's the difference between CLD, CCF and MLV?
Do you offer trade or bulk discounts?
How fast is delivery?
Can I return products if they're not suitable?
Need Help Choosing the Right Product?
Our sound deadening experts are here to help. Whether you're doing a full van build or a simple door upgrade, we'll recommend the perfect solution for your project.
