Product Overview
This premium 2mm damping mat utilises constrained layer damping technology to lower panel resonance and absorb structural vibrations, converting them into low-level heat. It effectively stops unwanted rattles, reduces road and outside noise, insulates your vehicle and dramatically improves the sound quality of your car interior.
Material Composition
This damping mat is made from a polymeric-based material with a high-strength adhesive for strong bonding. The top layer features a 0.1mm aluminium surface combined with a high-grade composition, making it highly efficient at converting vibrations into thermal energy. Its flexibility allows it to adhere properly to contoured panels, making installation straightforward.
Key Features
- 2mm thickness
- Butyl-based construction
- Mastic high adhesive for strong bonding
- Special deep-tension anti-resonance top
- Sheet size: 375 x 250 mm
- Weight: 3kg/sq.m
- Volume pack: 20 sheets, 20 sq.ft (1.87 sq.m)

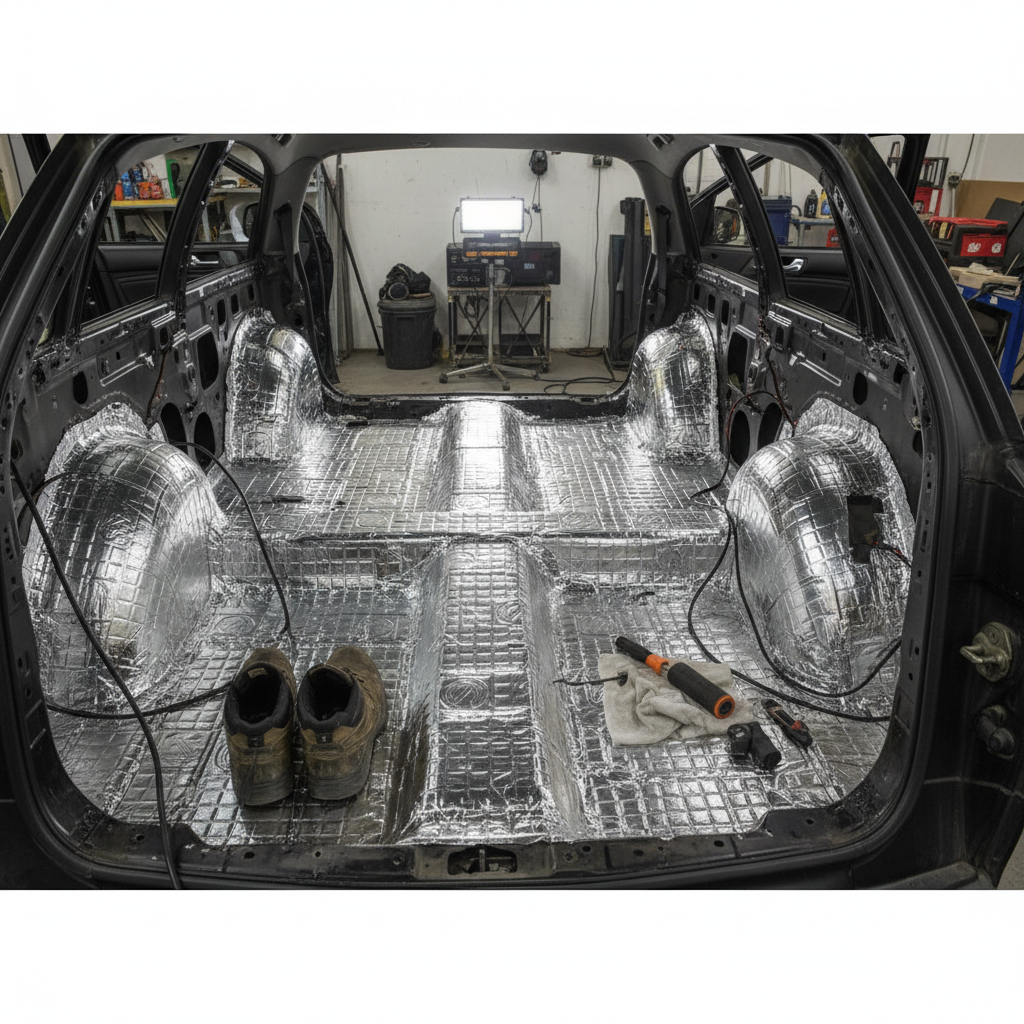

Installation and Applications
The damping mat can be installed anywhere in your vehicle, including under the bonnet. Its high-grade construction and effective damping capabilities have made it the choice of many automotive professionals.
Technical Specifications
| Specification | Measurement |
|---|---|
| Thickness | 2mm |
| Sheet Size | 375 x 250 mm |
| Weight | 3kg/sq.m |
| Volume Pack | 20 sheets, 20 sq.ft (1.87 sq.m) |
Customer Feedback
This product has received positive reviews for its effectiveness and ease of installation. Customers have noted significant reductions in cabin noise and an improvement in overall sound quality. Many find the adhesive to be exceptionally strong and user-friendly.
Frequently Asked Questions
-
Can the damping mat be applied to any surface?
Yes, it is designed to adhere well to various surfaces, including curved panels. -
How many sheets are included in the pack?
This pack contains 20 sheets, providing ample coverage for most applications. -
Is this product suitable for use in vehicles?
Absolutely, it is specifically designed for automotive use to improve sound insulation and reduce vibrations.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | CLD Deadening Mat |
| SKU | D_SPS11 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready

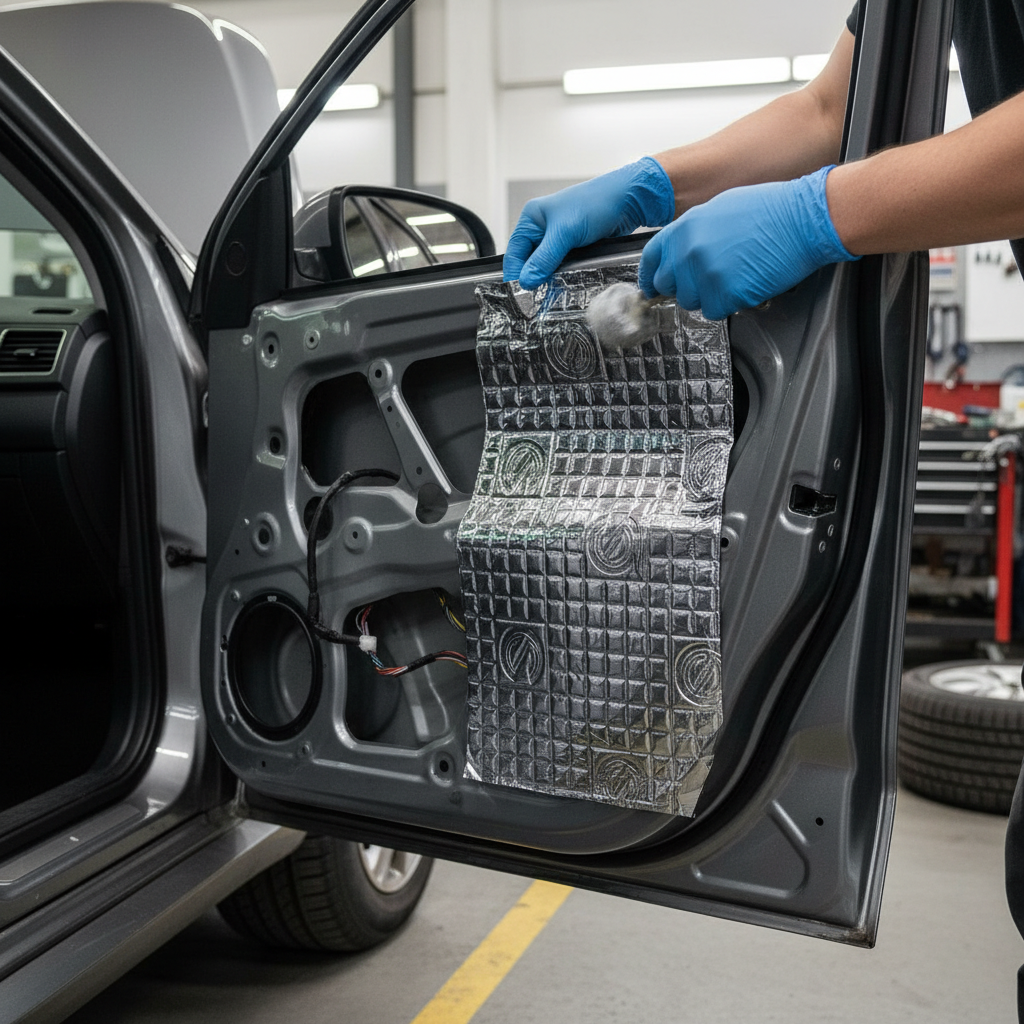

Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
