Product Overview
The Premium 2mm Damping Mat utilizes constrained layer damping technology to effectively lower panel resonance and absorb structural vibrations, converting them into low-level heat. This innovative solution helps to eliminate annoying rattles, outside noise, and enhances the acoustics of your vehicle's interior.
Constructed from a polymeric-based material with a supercharged adhesive, the Damping Mat features an aluminum surface and a unique high-grade composition that ensures efficient vibration conversion to thermal energy. Its flexibility allows it to conform to contoured panels, making it suitable for installation in various areas of your vehicle, including under the bonnet.
Technical Advantages
- Self-adhesive 2mm butyl-based viscoelastic polymer active layer
- Aluminum constraining layer maximizes noise reduction and performance
- Highly efficient vibration damper
- Superior performance compared to comparable products
- Contains 30% more active material than leading competitors
- Efficient performance requires less product
- More economical to use than competitors
Product Features
- Soft and easy to work with
- No unpleasant odors typically associated with inferior bitumen products
- High-grade adhesive remains effective even in extreme temperatures
- Non-flammable for added safety
- Professional-grade butyl construction
- Unbeatable cost-to-performance ratio
Specifications
- Material: Butyl Construction
- Thickness: 2mm
- Adhesive: Mastic High Adhesive
- Top Panel: 0.1mm Aluminum
- Special Feature: Deep Tension Anti-Resonance Top
- Sheet Size: 375 x 250 mm (14.76 x 9.84 inches)
- Weight: 3kg/sq.m
Bulk Pack Details
Includes 40 sheets, providing a total coverage of 40 sq.ft (3.75 sq.m).
Frequently Asked Questions
1. How do I install the Damping Mat?
The mat is self-adhesive and can be easily applied to clean, dry surfaces in your vehicle.
2. Can this product be used in extreme temperatures?
Yes, the high-grade adhesive is designed to remain effective in extreme temperatures.
3. Is the mat safe to use?
The product is non-flammable and safe for automotive use.
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | CLD Deadening Mat |
| SKU | D_SPS01 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready

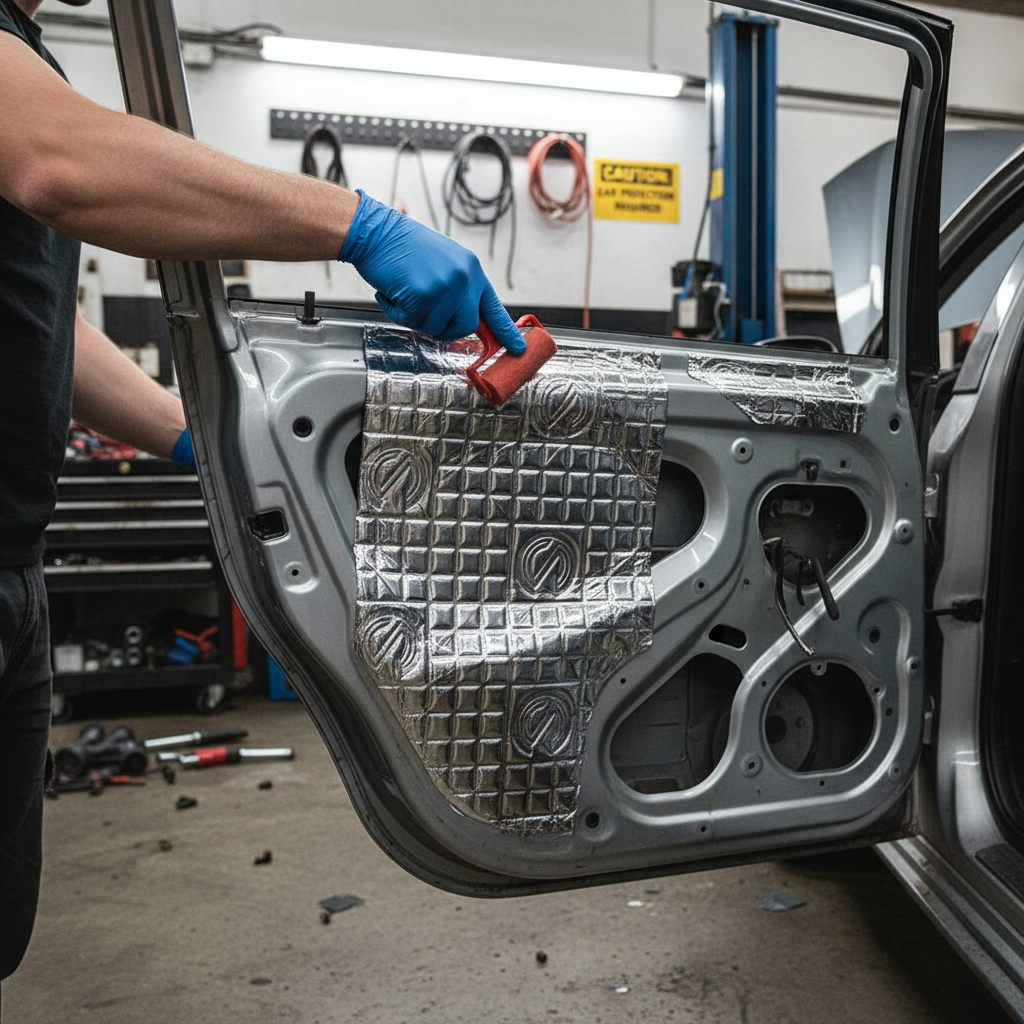

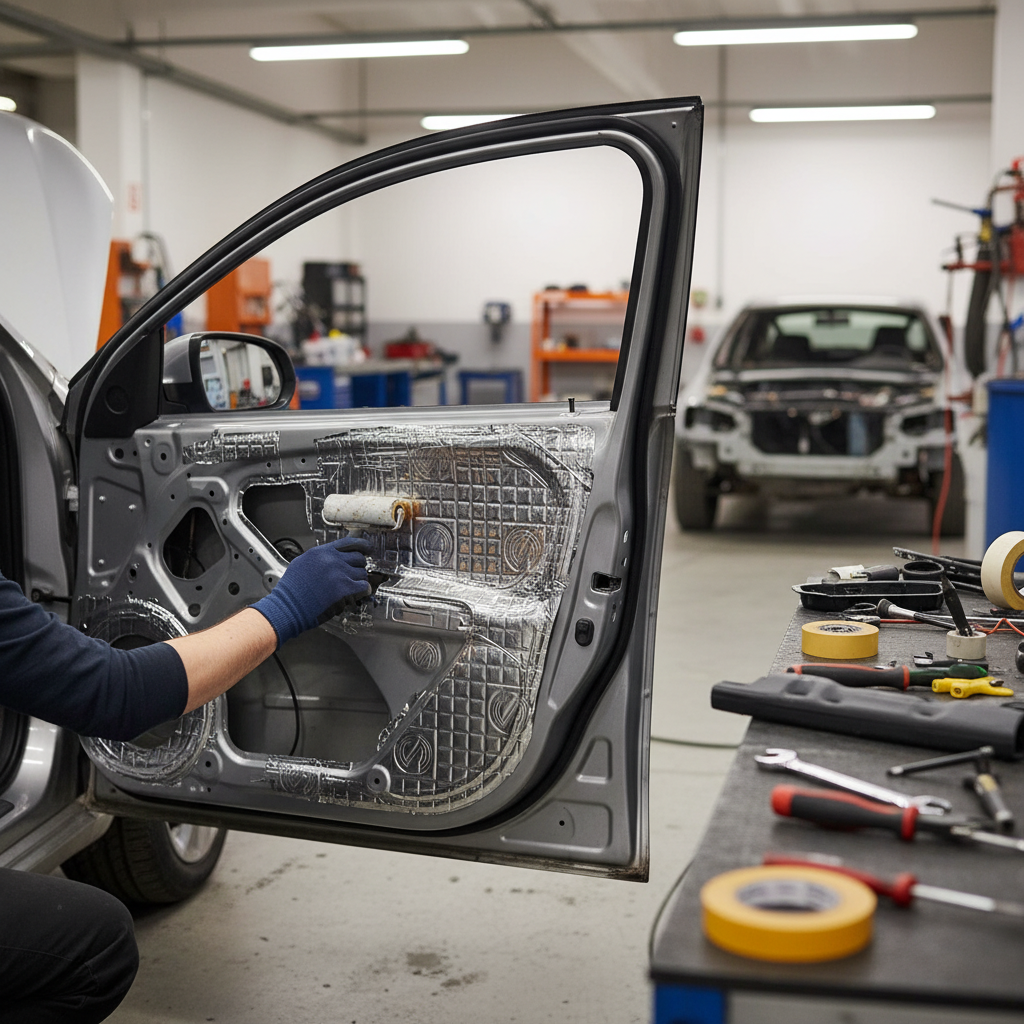

Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
