Product Overview
This Premium 3mm sound deadening mat is specifically designed to enhance the performance of your vehicle by reducing unwanted vibrations and structural noise. Made from high-grade butyl rubber, this mat provides superior sound dampening compared to many competitors on the market.
Key Features
- Developed for professional vehicle conversions
- High-grade butyl construction for effective noise reduction
- Hex embossed aluminum for added durability
- Black stealth finish for an aesthetic appeal
- Very soft and flexible for easy installation
- 3.0mm thick with strong adhesive backing
- Quality butyl chemistry ensures low odour
- Stops rattles, vibrations, and road noise
- Lower road, exhaust, engine, and transmission noise
- Heat resistant from -40°C to +120°C
- Flammability tested for vehicle interiors to ISO 3795:1989 standards
- Fully water and oil resistant
- Peel and stick application for convenience
- Pack weight: 13.9kg
- Individual sheet size: 370 x 250mm
- Bulk pack contains 30 sheets
- Pack coverage: 2.8 sq.m (30 sq.ft)
Application

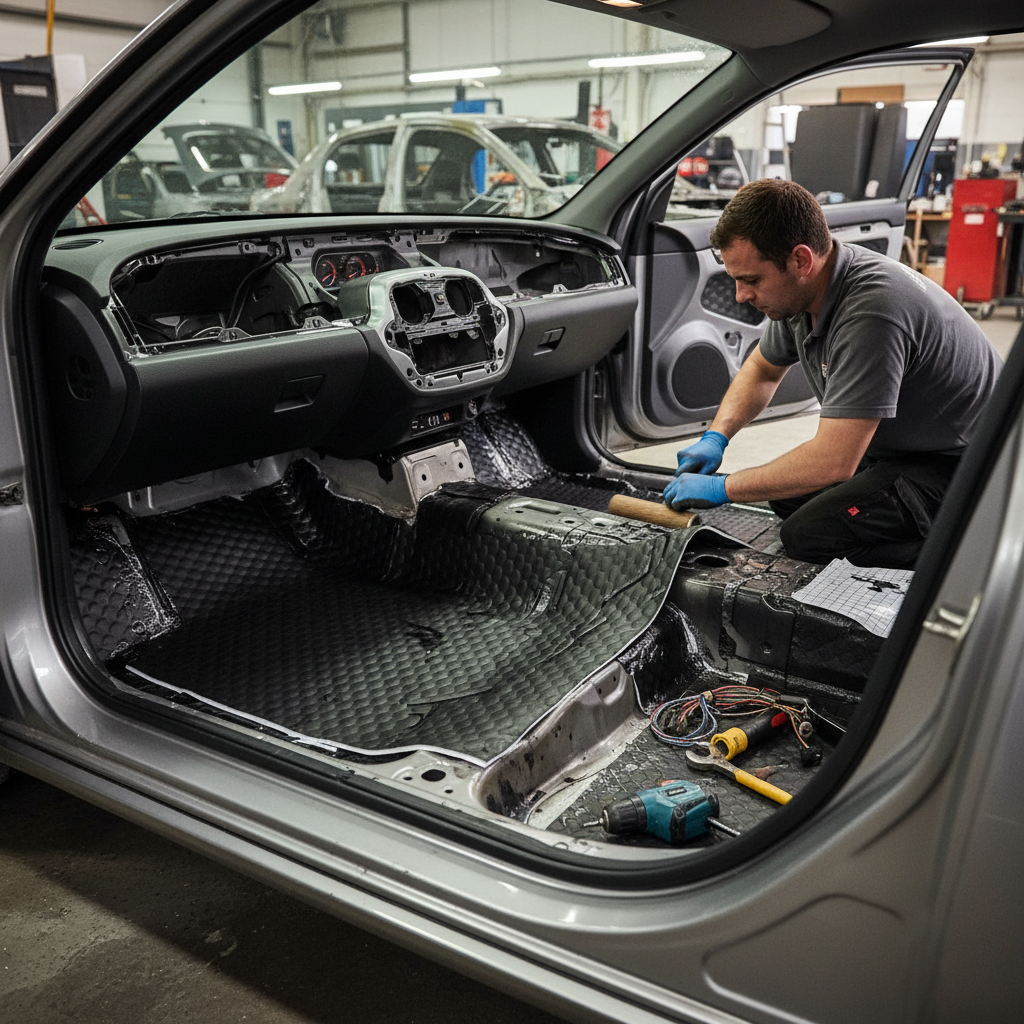

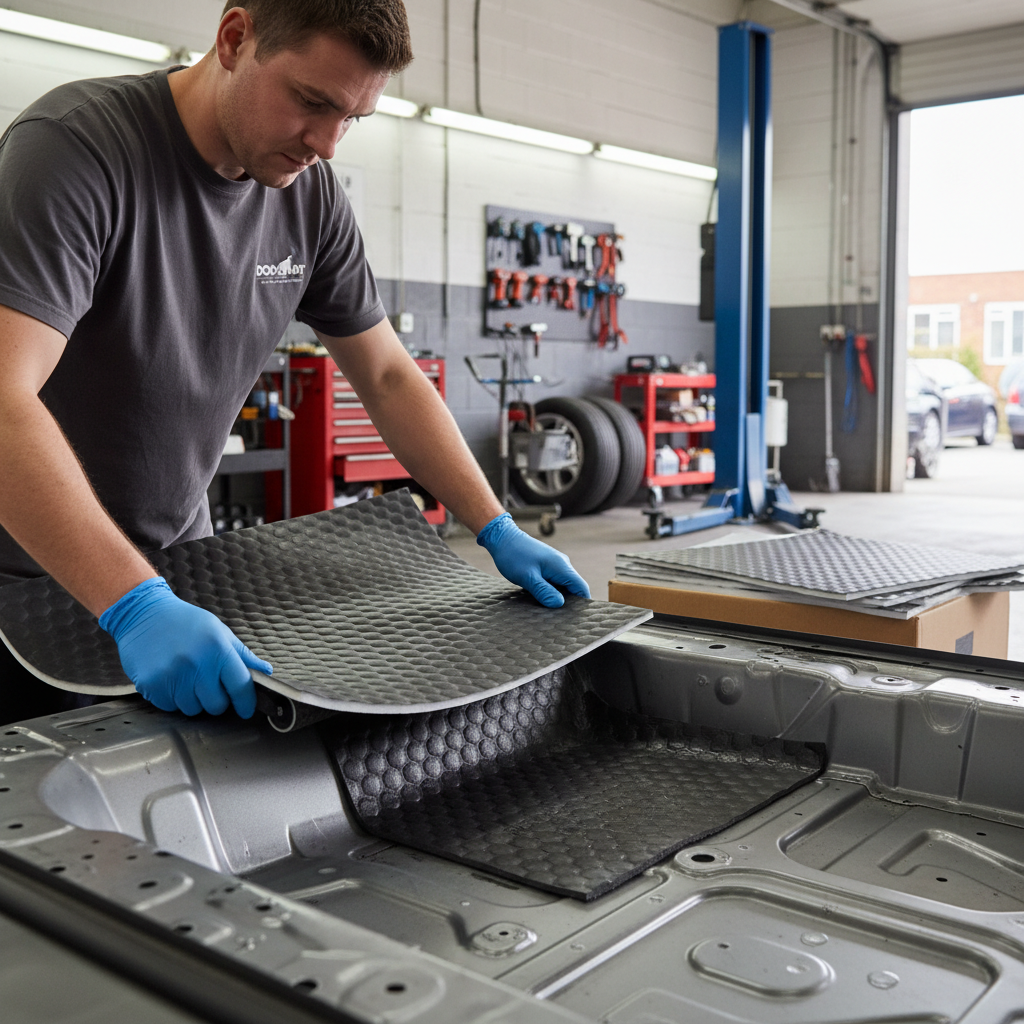

This sound deadening mat can be applied to vehicle floors, doors, and side panels to effectively absorb and reduce vibrations, rattles, and road rumble. Simply cut, peel, and stick the mat to the interior sheet metal of your vehicle for optimal results.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Sheet Thickness | 3.0mm |
| Individual Sheet Size | 370 x 250mm |
| Pack Weight | 13.9kg |
| Total Coverage | 2.8 sq.m (30 sq.ft) |
Technical Specifications
- Material: High-grade butyl rubber
- Adhesive: High-temperature adhesive for lasting hold
- Flammability: Tested to ISO 3795:1989 for vehicle interiors
- Temperature Resistance: -40°C to +120°C
- Water Resistance: Fully water and oil resistant
FAQ
Q: How do I install the sound deadening mat?A: Simply cut the mat to your desired size, peel off the backing, and stick it directly onto the clean surface of your vehicle.
Q: Can this mat be used in any vehicle type?A: Yes, it's designed for various vehicle types, including vans and motorhomes, to reduce noise and vibrations.
Q: Is this product safe to use in vehicle interiors?A: Yes, it has been flammability tested and meets safety standards for vehicle interiors.
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | CLD Deadening Mat |
| SKU | D_SPS177 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
