Product Overview

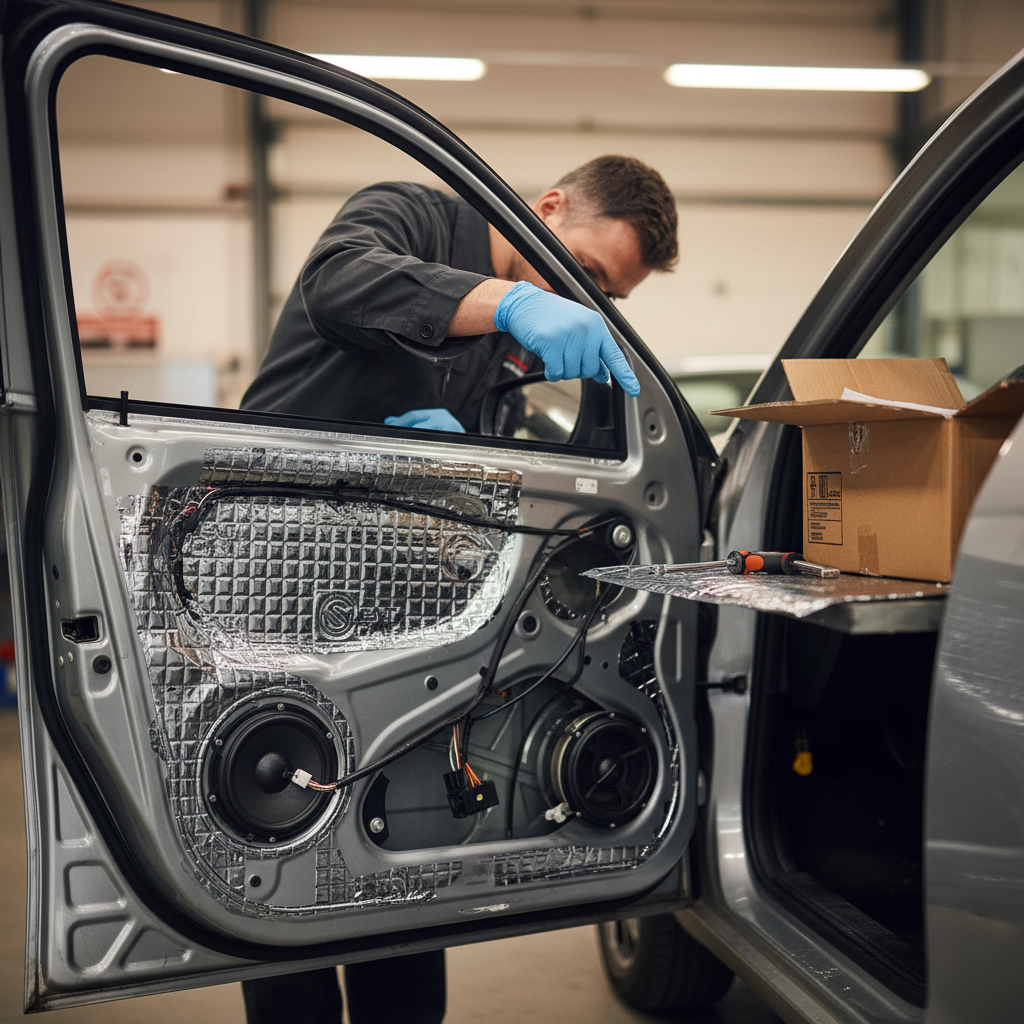

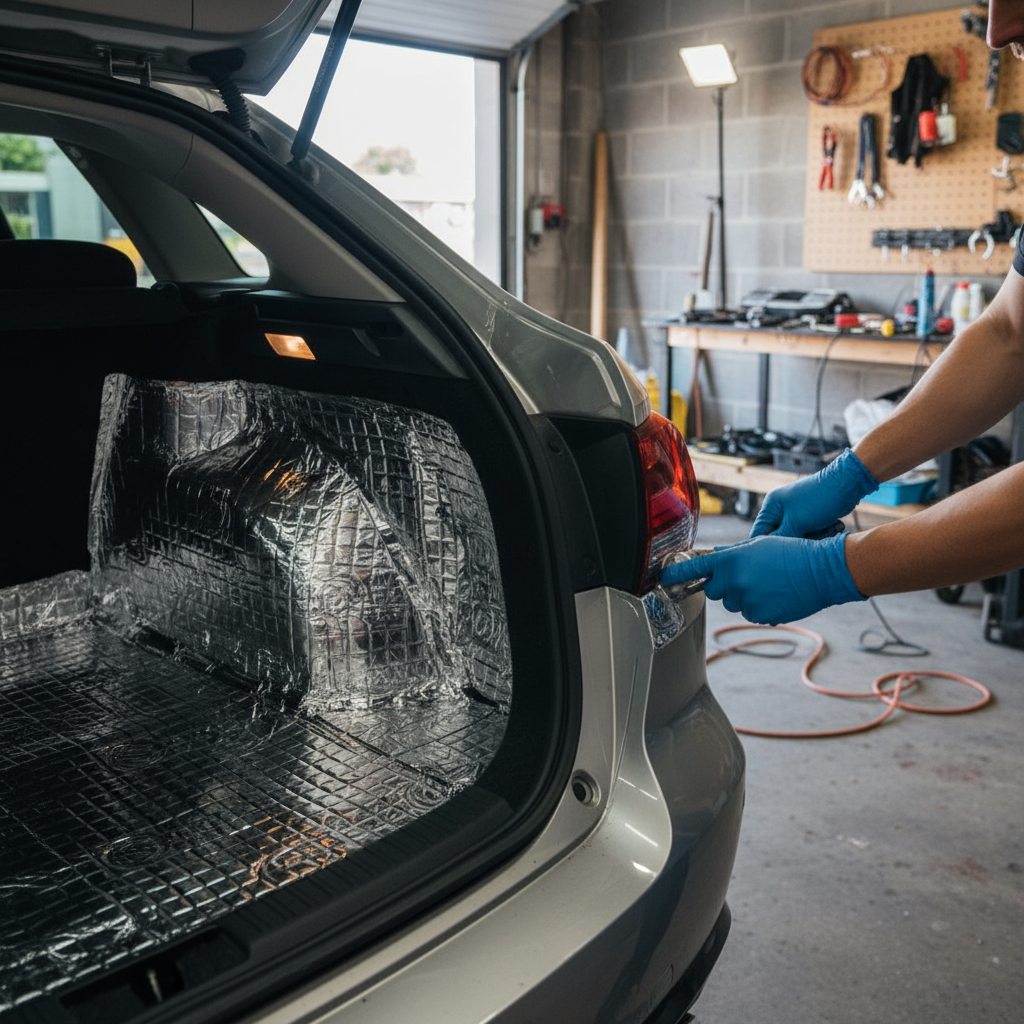

This double thickness 4mm version of a damping mat is perfect for areas that suffer from bad noise or vibrations, such as wheel arches, boot floors, and transmission tunnels. Install on a vehicle's internal metal panels to absorb and reduce vibrations, rattles, and road rumble.
The 4mm Damping Mat uses constrained layer damping to lower panel resonance and absorb structural vibrations, converting them into low-level heat. Stop those nasty rattles, eliminate road and outside noise, insulate your vehicle, and dramatically improve the sound of your car interior.
This damping mat is a polymeric-based material with a supercharged adhesive. With an aluminum surface and a unique high-grade composition, it has been proven to be extremely efficient at the conversion of vibration to thermal energy. The damping mat is very flexible, allowing it to properly adhere to contoured panels. It can be installed anywhere in your vehicle, including under the bonnet.
With high-grade construction and highly effective damping, this mat is already the choice of many automotive professionals.
Features
- 4mm Thickness
- Butyl Construction
- Mastic High Adhesive
- 0.1mm Aluminum Top Panel
- Special Deep Tension Anti Resonance Top
- Sheet size: 375 x 250 mm
- Volume Pack: 12 Sheets
- Pack Coverage: 1.12 sq.m / 12.05 sq.ft
- Weight: 6 kg/sq.m
Typical Uses
- Fitting to a vehicle's internal metal panels to absorb and reduce vibrations, rattles, and road rumble.
- Lining metal panels, cabinets, sinks, home appliances, computers, etc., to prevent noise and vibrations.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Sheet Size | 375 x 250 mm |
| Pack Coverage | 1.12 sq.m / 12.05 sq.ft |
| Weight | 6 kg/sq.m |
Technical Specifications
- Material: Polymer with Aluminum Surface
- Thickness: 4mm
- Adhesive Type: Mastic High Adhesive
FAQs
-
Q: Can this damping mat be used in other applications outside vehicles?
A: Yes, it can be used for lining metal panels, cabinets, sinks, and home appliances. -
Q: How easy is it to install the damping mat?
A: The mat is very flexible, making it easy to adhere to contoured surfaces. -
Q: What benefits does this damping mat provide?
A: It reduces vibrations, rattles, and noise, improving overall sound quality in your vehicle.
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | CLD Deadening Mat |
| SKU | D_SPS15 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
