Product Overview
This Premium self-adhesive anti-vibration material is designed for high-performance applications, utilizing a high-quality butyl rubber composite. It features special polymers and is reinforced with 100 microns thick embossed aluminum foil, enhancing its acoustic properties.
With its remarkable vibration damping capabilities across a wide range of temperatures, this material boasts high flexibility, excellent surface adhesion, and very high viscosity. Being one of the lightest anti-vibration materials available, it effectively reduces noise without the added mass associated with competitor products.
These vibro-acoustic materials are intended primarily for professional installers of car audio equipment and vehicle restoration, making them a preferred choice for automotive applications.
Technical Specifications
- Thickness: 2.2mm
- Sheet Size: 370 x 500mm
- Foil Thickness: 100µm
- Weight per Sheet: 570g
- Sheets in Package: 15pcs
- Coverage per Package: 2.77sq.m
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Thickness | 2.2mm |
| Sheet Size | 370 x 500mm |
| Foil Thickness | 100µm |
| Weight per Sheet | 570g |
| Sheets in Package | 15pcs |
| Coverage per Package | 2.77sq.m |
Benefits
- High flexibility for easy installation in various applications.
- Lightweight design reduces the overall mass while maintaining performance.
- Excellent damping properties enhance sound quality in automotive audio systems.
- High viscosity ensures strong adhesion to surfaces.
FAQ
Q: Can this material be used in other applications apart from automotive?
A: Yes, it can be utilized in various applications requiring vibration damping and noise reduction.
Q: How do I install the anti-vibration material?
A: Ensure the surface is clean and dry, peel off the backing, and apply the material directly to the desired area.
Q: Is this material suitable for extreme temperatures?
A: Yes, it is designed to perform well across a wide range of temperatures.
Express Shipping
Same day dispatch before 2pm
Quality Guaranteed
Independently tested products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns on unused items
| Product Type | CLD Deadening Mat |
| SKU | D_SPS175 |
| Weight | Contact for details |
| Vendor | soundproofingshop.co.uk |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready

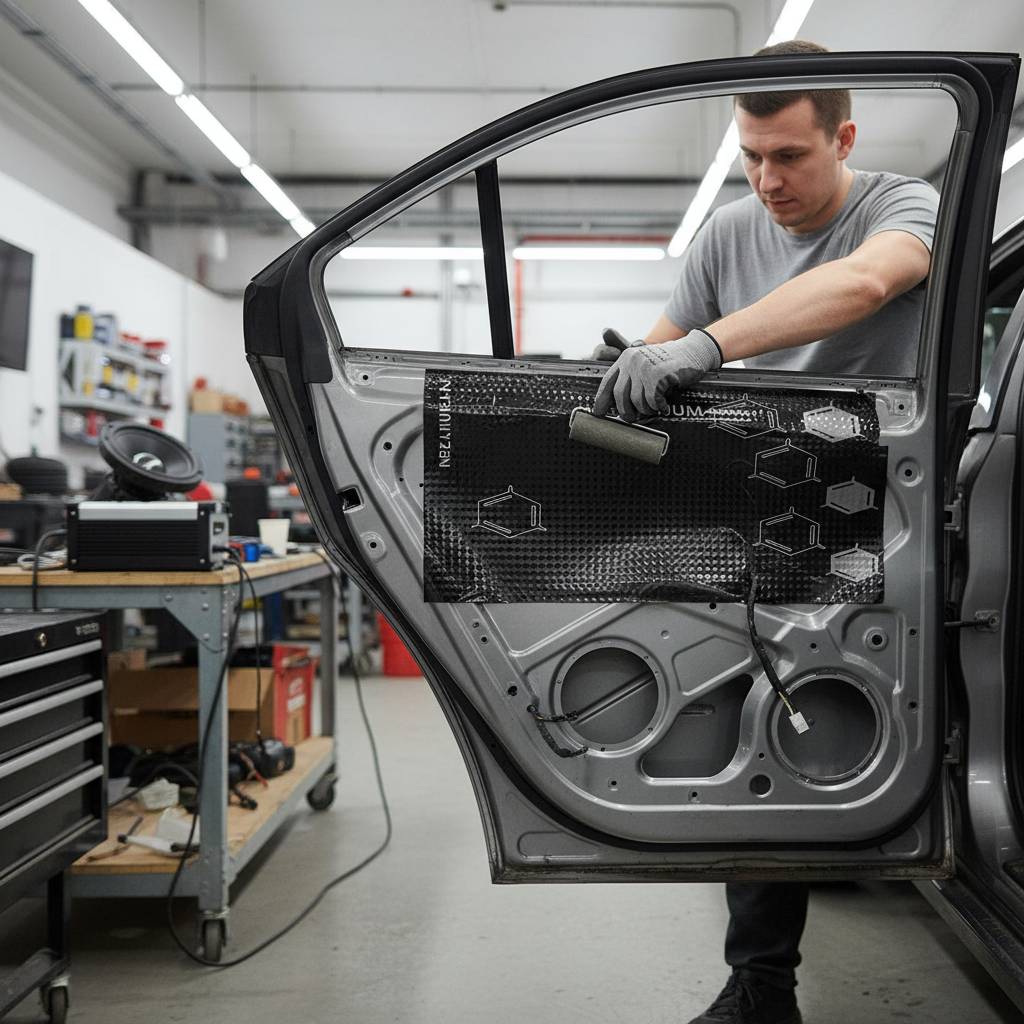

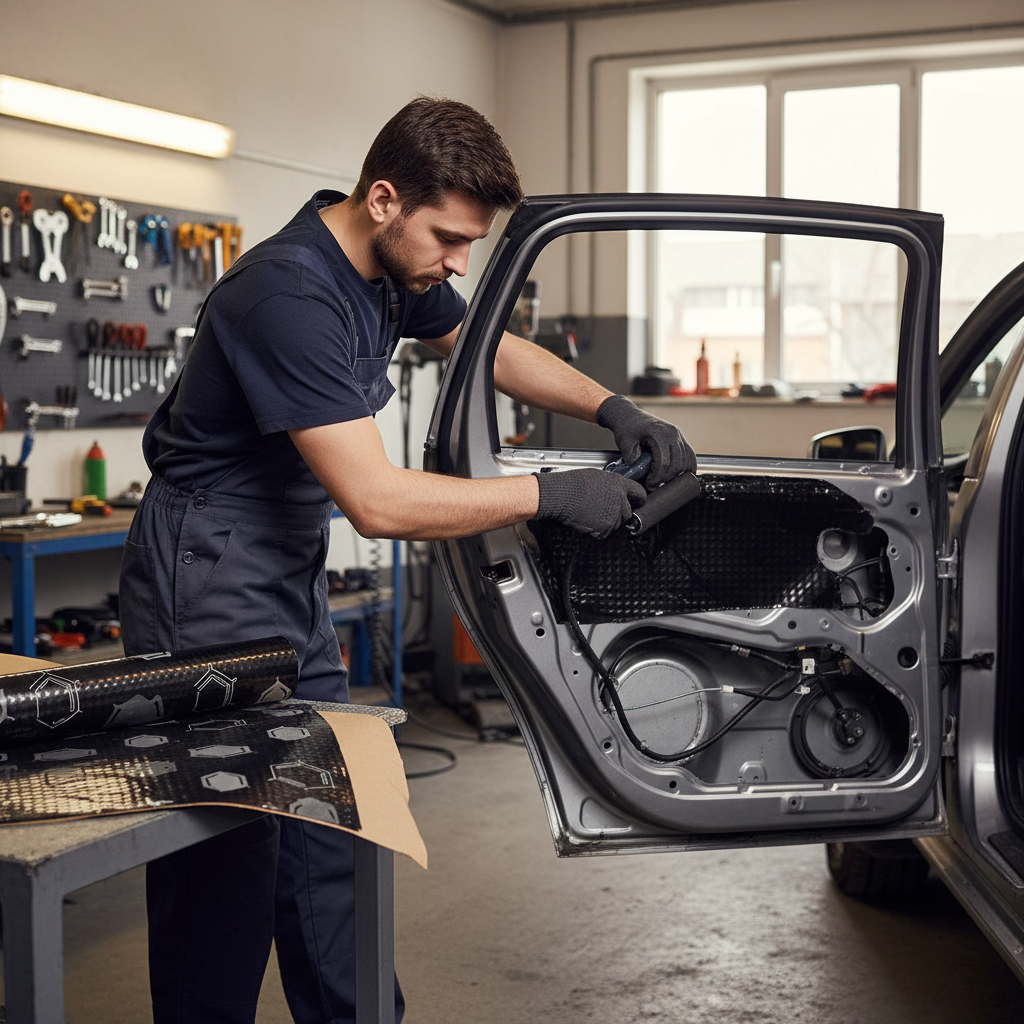

Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
