Product Overview
This premium self-adhesive anti-vibration material is an advanced option, specifically designed to provide exceptional vibration damping. Made from a high-quality butyl rubber composite, it includes special polymers and is reinforced with 100-micron embossed aluminium foil, significantly improving its acoustic properties.
Characterised by high flexibility, very high viscosity, and excellent surface adhesion, this anti-vibration material is lightweight for its type. The use of a thinner and lighter damping mat allows for effective vibration and noise reduction without added mass. This professional-grade material is ideal for professional installers of car audio equipment and for vehicle restoration projects.
Technical Specifications
- Thickness: 1.8mm
- Sheet Size: 370 x 500mm
- Foil Thickness: 100µm
- Weight per Sheet: 500g
- Sheets in Package: 16pcs
- Coverage per Package: 2.96sq.m
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Thickness | 1.8mm |
| Sheet Size | 370 x 500mm |
| Foil Thickness | 100µm |
| Weight per Sheet | 500g |
| Sheets in Package | 16pcs |
| Coverage per Package | 2.96sq.m |
Benefits
- High vibration damping across a wide temperature range.
- Lightweight design reduces the overall mass while maintaining effectiveness.
- Excellent flexibility allows for easy installation in various applications.
- Professional-grade quality suitable for demanding installations.
FAQs
-
What is the primary use of this material?
This material is primarily used for sound damping in vehicles and audio installations. -
Can this material be used in high-temperature environments?
Yes, it is designed to perform well across a wide temperature range. -
How should I install the anti-vibration material?
Ensure the surface is clean and dry before applying the self-adhesive material for the best adhesion.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | CLD Deadening Mat |
| SKU | D_SPS141 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready

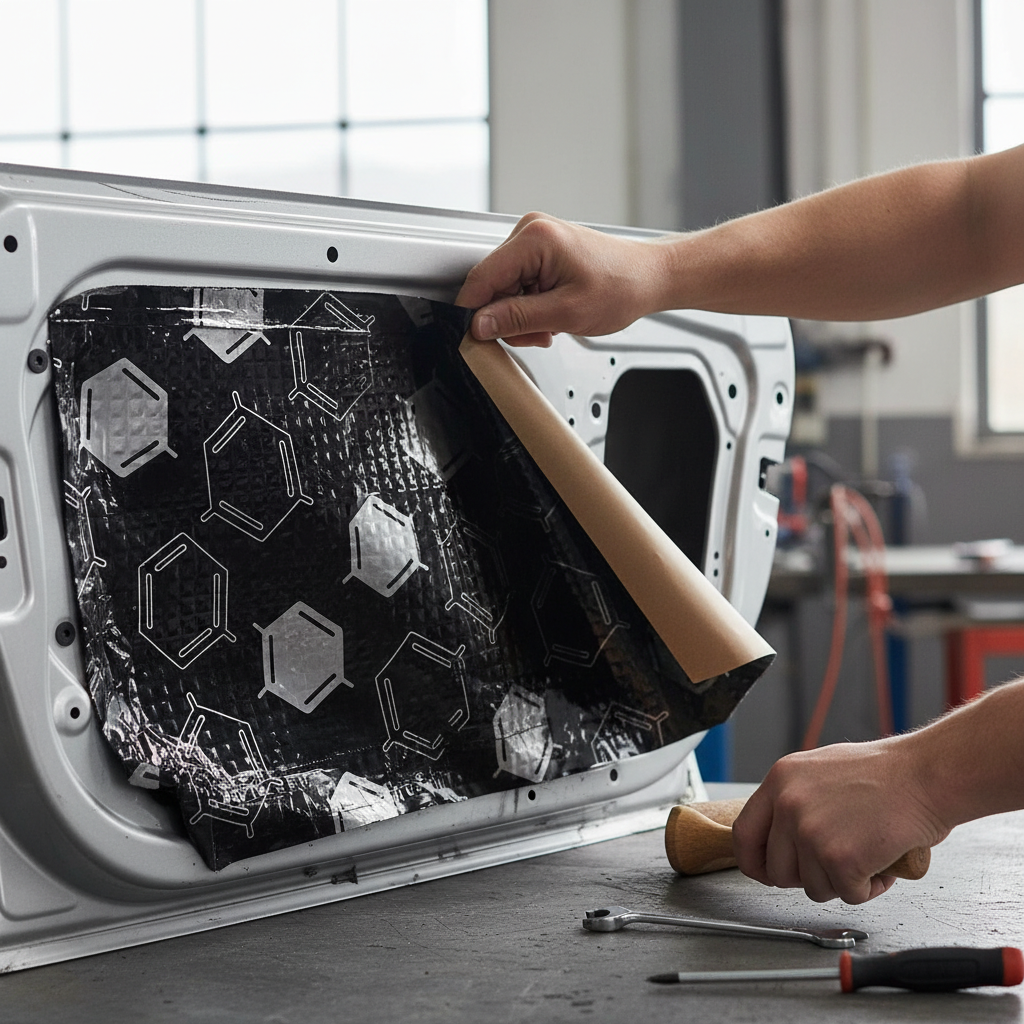

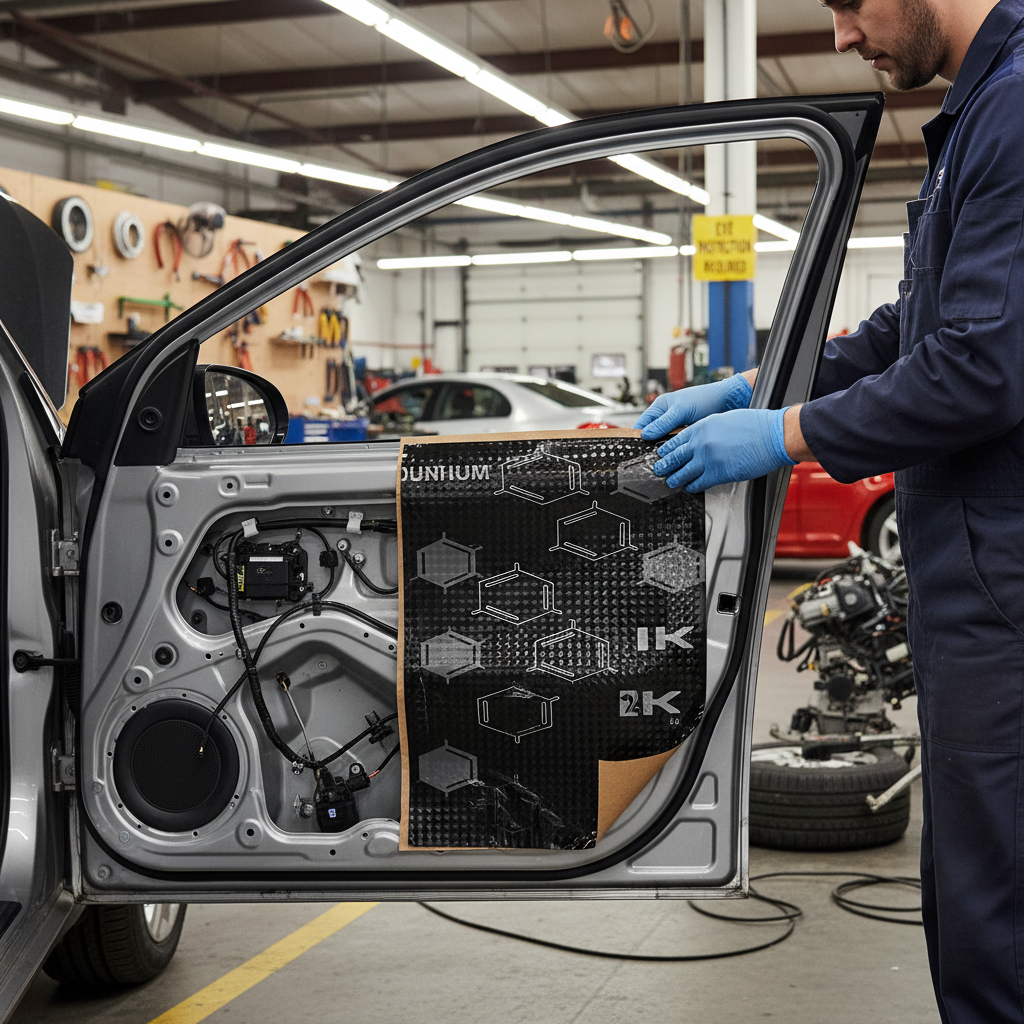

Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
