Product Overview
Introducing the premium self-adhesive flexible foam liner, designed specifically for vehicle heat and sound insulation. This high-performance foam liner is perfect for application over sound deadening materials, providing exceptional thermal insulation and acoustic absorption.
Features and Benefits
- Self-adhesive high-quality liner that maintains its shape under pressure
- Flexible enough to trim easily in various areas of the vehicle
- Water-resistant and high-temperature-resistant
- Flame-retardant to UK vehicle standards for safety
- Closed-cell foam formulation for superb thermal insulation
- Thermal conductivity of 0.034 W/mK
When installed in your vehicle, this foam liner acts as a thermal insulating layer, helping to stabilise cabin temperatures throughout the year. Its resilient finish allows for effective noise reduction, making it an invaluable addition to any vehicle.
Typical Uses

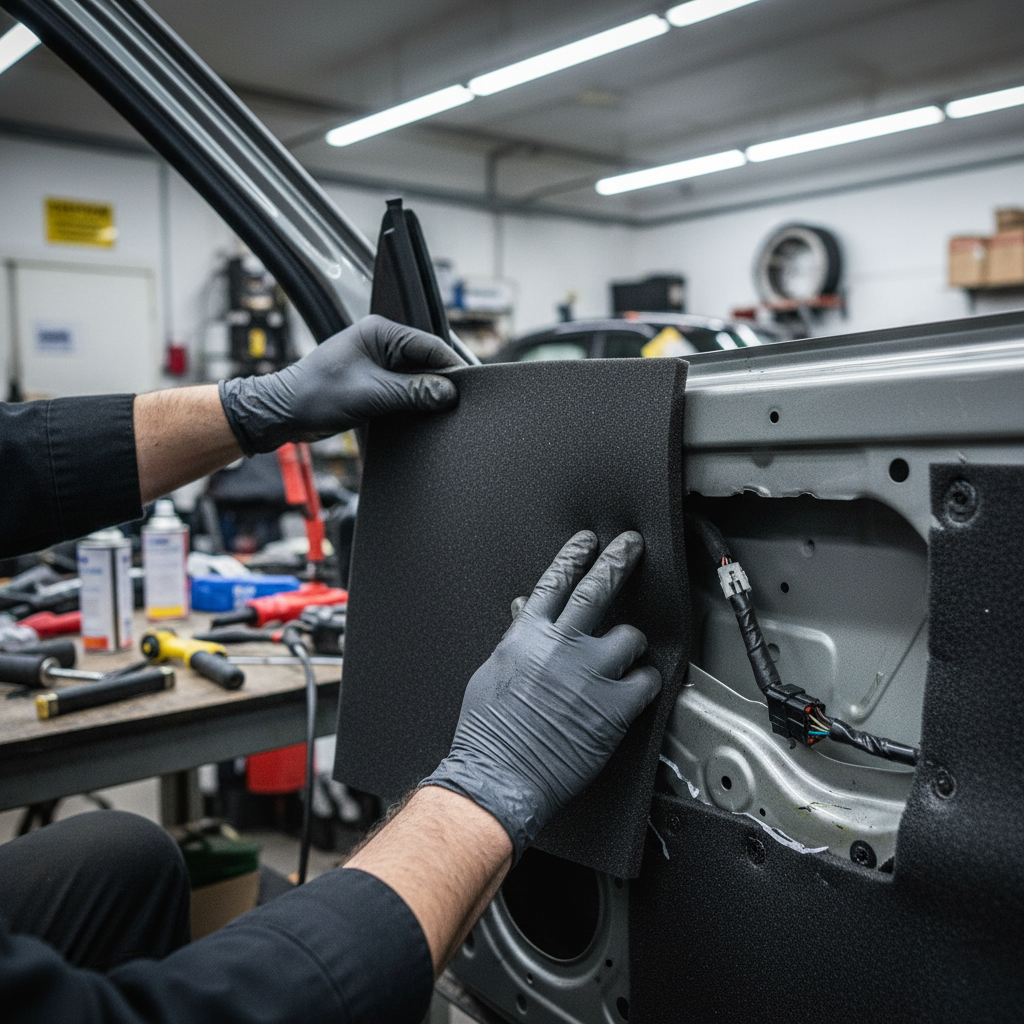

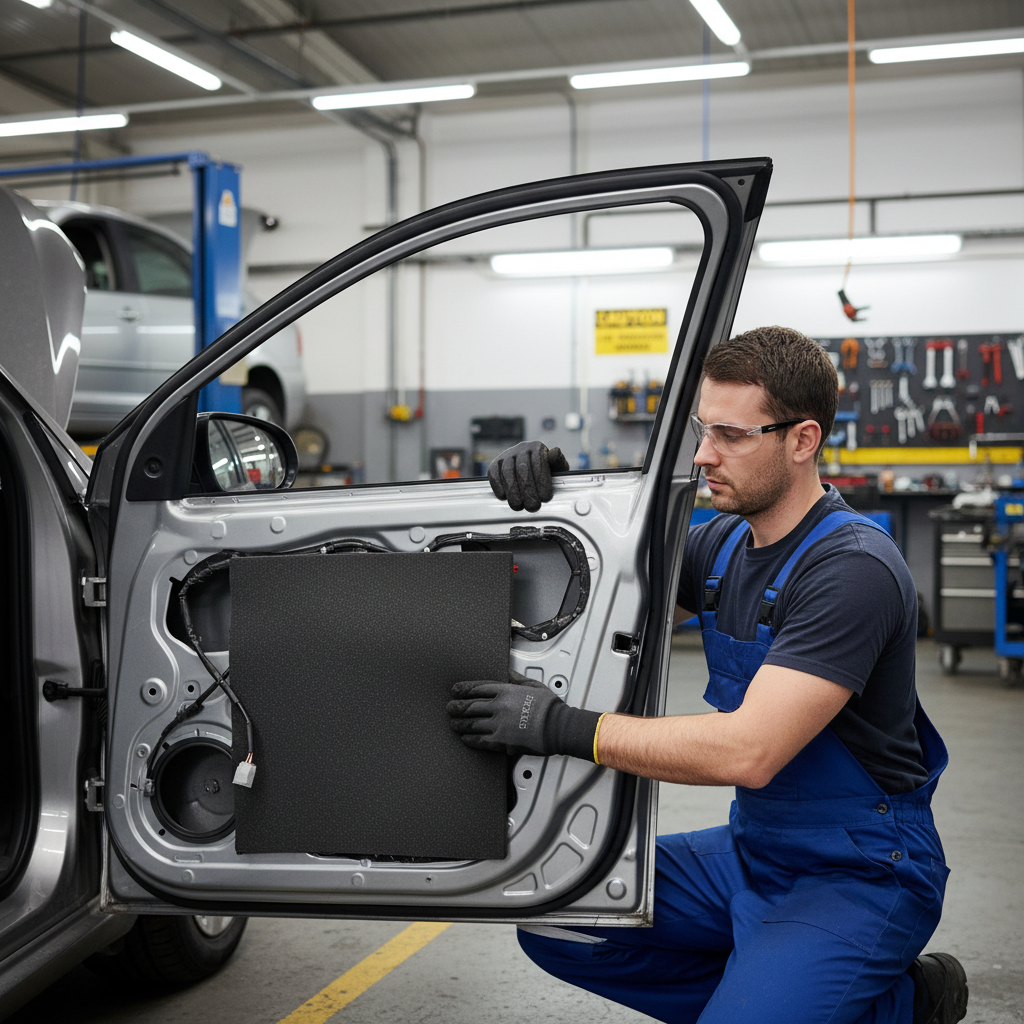

- Fitting to vehicle panels to reduce road noise and enhance cabin insulation
- Lining panels, cupboards, and doors at home to insulate and reduce noise transfer
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Sheet Size | 500mm x 300mm |
| Thickness | 12mm (1/2") |
| Pack Coverage | 1.5 sq.m / 16.1 sq.ft |
| Temperature Range | -40°C to +100°C |
| Material Type | Flexible closed-cell nitrile elastomer |
| Flammability Testing | ISO 3795:1989 |
FAQ
-
What is the thermal conductivity of the foam liner?
The thermal conductivity is 0.034 W/mK, making it highly effective for insulation. -
Can the foam liner be used in high-temperature environments?
Yes, it is designed to withstand temperatures ranging from -40°C to +100°C. -
Is the foam liner suitable for use in vehicles?
Yes. It is flame-retardant and complies with UK vehicle standards.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | CCF Noise Barrier |
| SKU | D_SPS87 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
Shipping
- £9.99 flat-rate shipping on all UK orders
- Dispatched within 1-2 working days (order before 2pm, Mon-Fri)
- 3-6 working days tracked delivery
- Full tracking provided via email
Returns
- 14-day returns on any order, for any reason
- You can open and inspect before you decide
- Contact us before returning: sales@soundproofingshop.co.uk
- Refunds processed within 5 working days
For damaged or faulty items, contact us immediately — we'll arrange a free replacement or full refund.
Frequently Asked Questions
Everything you need to know about sound deadening
How much sound deadening material do I need?
Coverage depends on your vehicle and goals. For basic noise reduction, cover 25-40% of each panel. For maximum results (audio builds, full insulation), aim for 60-80% coverage. Our team can advise on exact quantities for your vehicle — just get in touch.
Can I install sound deadening myself?
Absolutely. All our products are designed for DIY installation with peel-and-stick application. You'll need basic tools — a roller, utility knife, and clean surface. Most door panels take 30-60 minutes. We include installation tips with every order.
What's the difference between CLD, CCF and MLV?
CLD (Constrained Layer Damping) mats reduce vibration and panel resonance — the foundation layer. CCF (Closed Cell Foam) blocks airborne noise and adds thermal insulation. MLV (Mass Loaded Vinyl) is a dense barrier that blocks sound transmission. For best results, use all three in layers.
Do you offer trade or bulk discounts?
Yes! We offer competitive pricing for trade customers, van conversion businesses, and bulk buyers. Contact us with your requirements for a custom quote. Bundle deals are also available on our website.
How fast is delivery?
Orders placed before 2pm are dispatched within 1-2 working days. Once dispatched, transit typically takes a further 2-4 working days. Total delivery time is usually 3-6 working days from when you place your order. Delivery is a flat £9.99 to any UK address. We ship nationwide across the UK.
Can I return products if they're not suitable?
Yes, we offer a 14-day return policy on any order, for any reason, and you may open and inspect it first. Please contact our team to arrange a return. Return postage is yours unless the item is faulty. Items cut to your specification are non-returnable unless faulty.
Need Help Choosing the Right Product?
Our sound deadening experts are here to help. Whether you're doing a full van build or a simple door upgrade, we'll recommend the perfect solution for your project.
