Product Overview

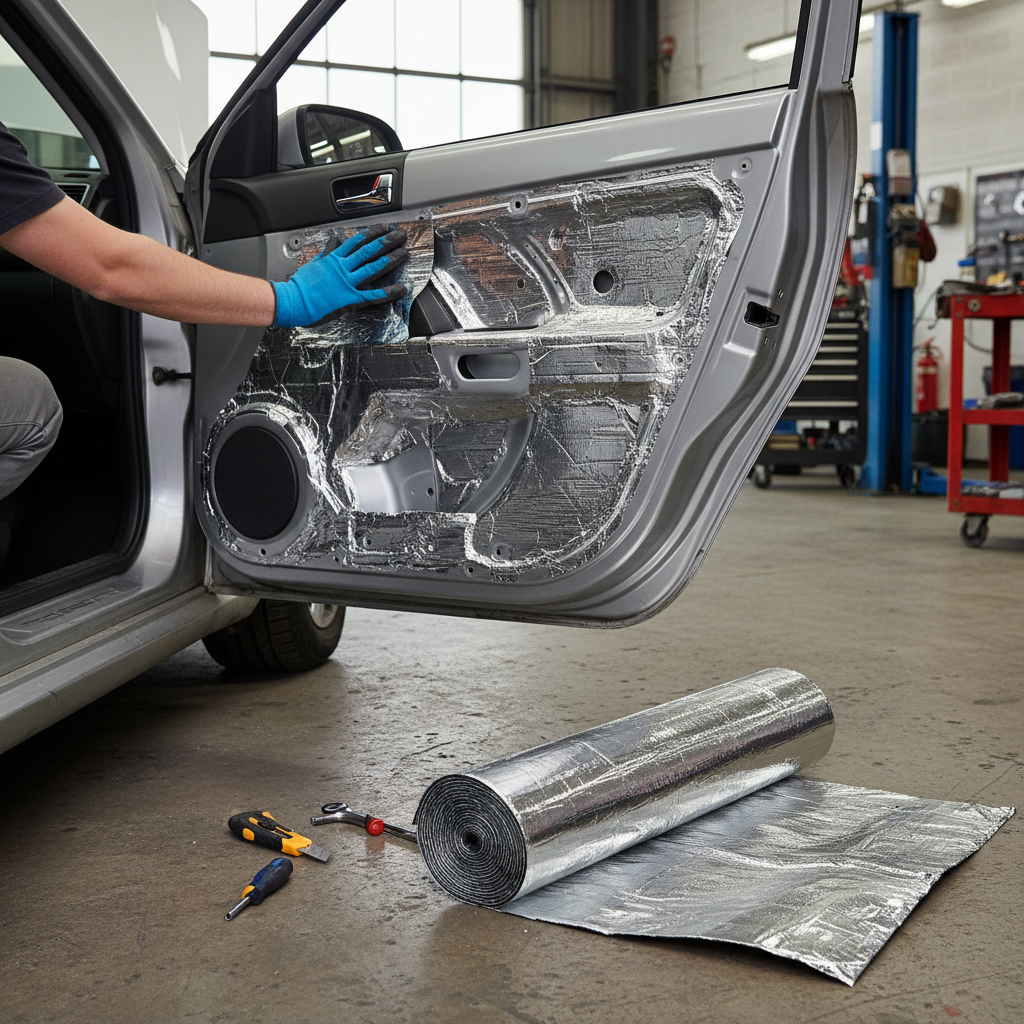

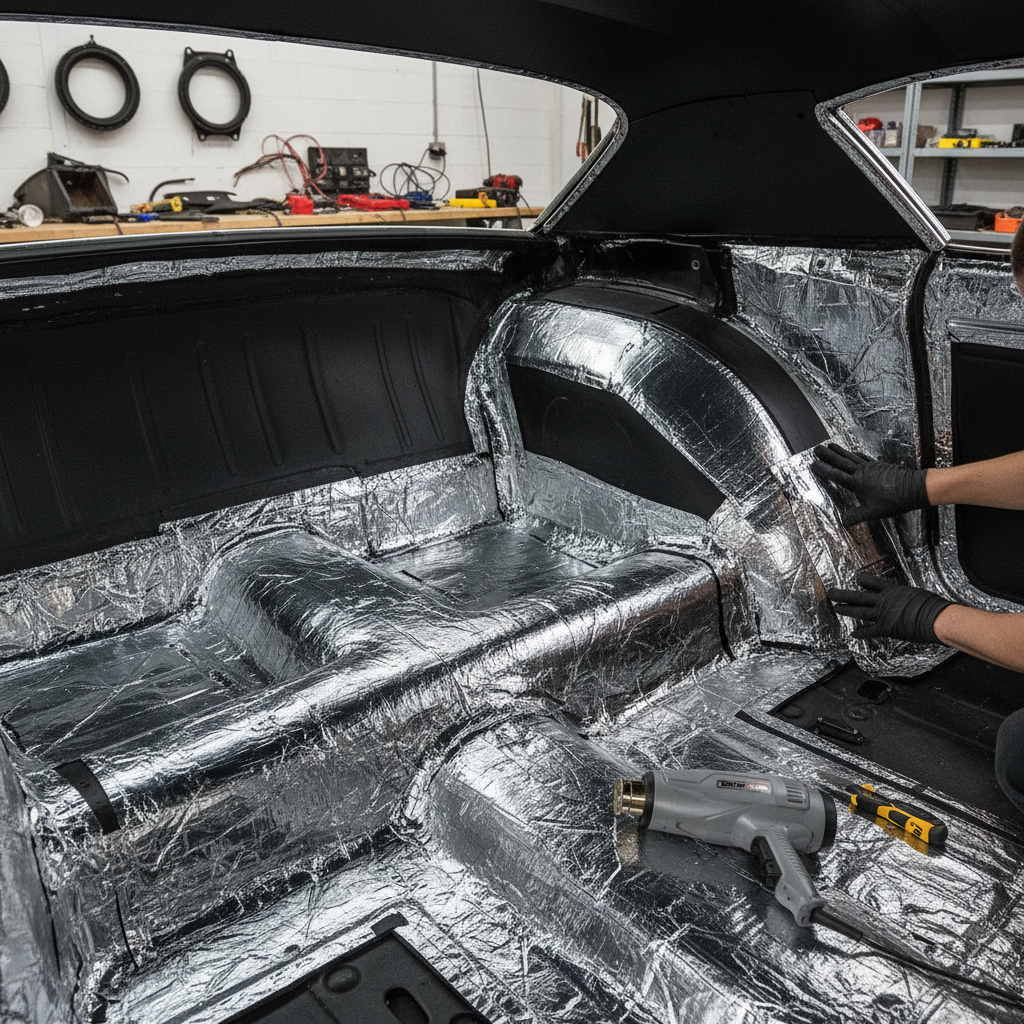

This premium self-adhesive insulation is designed for easy installation in vehicles, featuring a unique combination of aluminium foil and soft closed-cell foam. Its design allows it to curve and fit seamlessly into the contours of your vehicle, making it an ideal solution for insulating van sides, floors, and roofs.
Key Benefits
- Easy to install: simply cut, peel, and stick.
- Efficient low-profile insulation, perfect for maximising space.
- High thermal efficiency nitrile foam, providing effective insulation.
- Warmer in winter and cooler in summer, enhancing comfort.
- Reduces condensation, preventing moisture build-up.
- Acts as a barrier against heat loss, ensuring energy efficiency.
- Strong crush resistance for durability.
- Enhances overall van interior comfort.
- Moisture-resistant dense closed-cell foam for long-lasting performance.
- Reflective foil layer acts as a vapour barrier.
- Strong peel-and-stick self-adhesive backing for secure application.
- Thermal conductivity of 0.033 W/mK for effective insulation.
- Flammability tested for vehicle interiors under ISO 3795:1989 standards.
- Designed with quality control in mind.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Thickness | 5mm |
| Total Area | 5 Square Metres (53.8 Square Feet) |
| Roll/Sheet Size | 0.5m x 10m |
Technical Specifications
- Material: nitrile foam with aluminium foil.
- Thermal conductivity: 0.033 W/mK.
- Flammability certification: ISO 3795:1989.
- Moisture resistance: high moisture resistance due to the closed-cell structure.
FAQ
How do I install the insulation?
Simply cut the insulation to the desired size, peel off the backing, and stick it onto the clean surface.
Can this insulation be used in all seasons?
Yes, it is designed to keep your vehicle warm in winter and cool in summer while reducing noise.
Is this insulation safe for vehicle interiors?
Yes, it has been flammability tested for vehicle interiors and meets safety standards.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | CCF Noise Barrier |
| SKU | D_SPS123 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
Shipping
- £9.99 flat-rate shipping on all UK orders
- Dispatched within 1-2 working days (order before 2pm, Mon-Fri)
- 3-6 working days tracked delivery
- Full tracking provided via email
Returns
- 14-day returns on any order, for any reason
- You can open and inspect before you decide
- Contact us before returning: sales@soundproofingshop.co.uk
- Refunds processed within 5 working days
For damaged or faulty items, contact us immediately — we'll arrange a free replacement or full refund.
Frequently Asked Questions
Everything you need to know about sound deadening
How much sound deadening material do I need?
Coverage depends on your vehicle and goals. For basic noise reduction, cover 25-40% of each panel. For maximum results (audio builds, full insulation), aim for 60-80% coverage. Our team can advise on exact quantities for your vehicle — just get in touch.
Can I install sound deadening myself?
Absolutely. All our products are designed for DIY installation with peel-and-stick application. You'll need basic tools — a roller, utility knife, and clean surface. Most door panels take 30-60 minutes. We include installation tips with every order.
What's the difference between CLD, CCF and MLV?
CLD (Constrained Layer Damping) mats reduce vibration and panel resonance — the foundation layer. CCF (Closed Cell Foam) blocks airborne noise and adds thermal insulation. MLV (Mass Loaded Vinyl) is a dense barrier that blocks sound transmission. For best results, use all three in layers.
Do you offer trade or bulk discounts?
Yes! We offer competitive pricing for trade customers, van conversion businesses, and bulk buyers. Contact us with your requirements for a custom quote. Bundle deals are also available on our website.
How fast is delivery?
Orders placed before 2pm are dispatched within 1-2 working days. Once dispatched, transit typically takes a further 2-4 working days. Total delivery time is usually 3-6 working days from when you place your order. Delivery is a flat £9.99 to any UK address. We ship nationwide across the UK.
Can I return products if they're not suitable?
Yes, we offer a 14-day return policy on any order, for any reason, and you may open and inspect it first. Please contact our team to arrange a return. Return postage is yours unless the item is faulty. Items cut to your specification are non-returnable unless faulty.
