Product Overview

This large van insulation and sound deadening kit is based on the standard large van kit and features an upgrade to a high-performance 10mm liner and 2mm deadening material. Developed for optimal performance, flexibility, and quality, this kit is essential for your next van project.

Enhance Your Van Experience

Most popular vans start with minimal luxury, but the interior can be significantly improved with sound deadening and insulation. Whether you use your van as a workhorse or for weekend getaways, this kit allows for a quick and effective upgrade.

Compatible Vans

This kit contains sufficient sound deadening and insulation sheets to treat the crucial sides, wheel arches, and roof areas of large vans, including:

• Volkswagen T4/T5/T6 LWB
• Fiat Ducato
• Ford Transit LWB
• Mercedes Vito LWB
• Citroen Relay
• Peugeot Boxer
• Vauxhall Movano

(Note: extra-large 'High Top' LWB & L3 vans may require additional material to cover the increased height/length.)

Installation Instructions

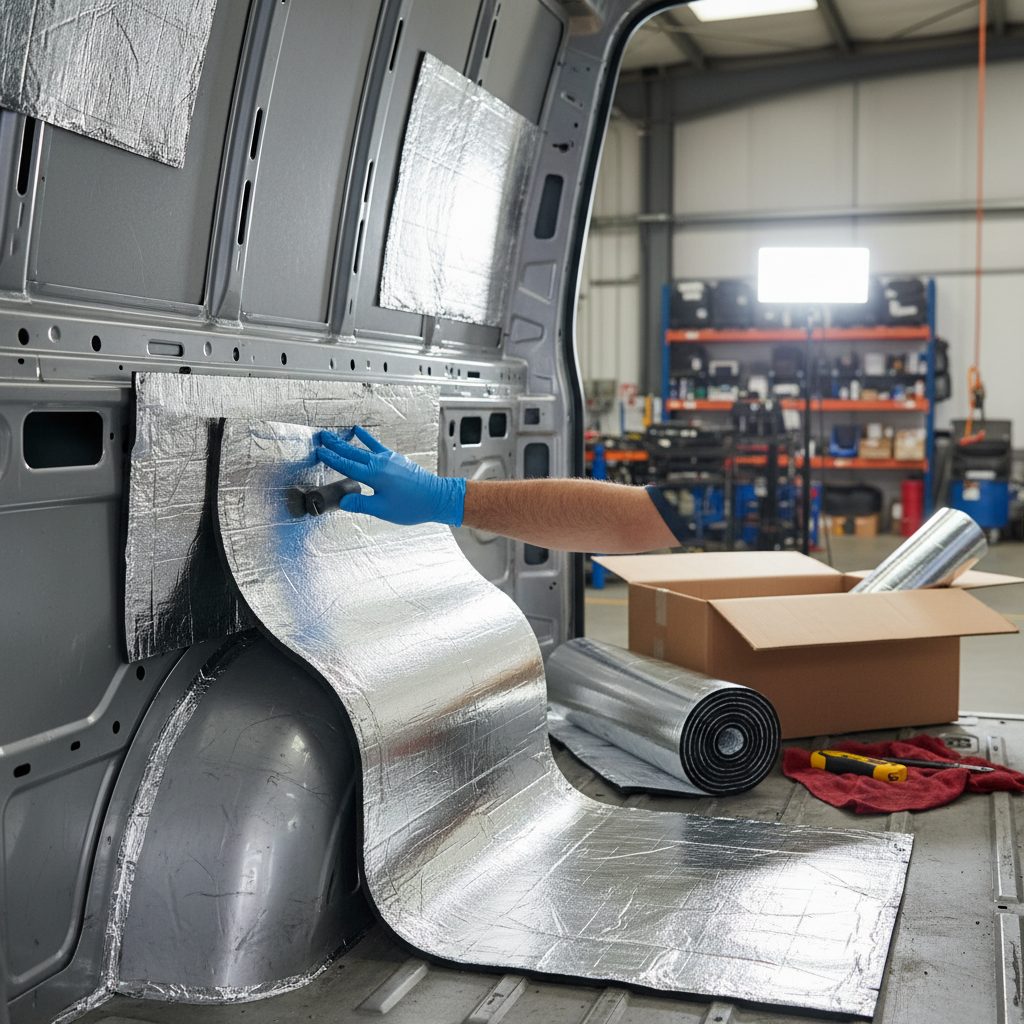

The 2mm sound deadening mat is to be applied first at an approximate 50% coverage ratio to all single-skin steel areas such as side panels, roof, wheel arches, and doors. This is a simple peel-and-stick application. A large van will require approximately two bulk 40-sheet packs (7.4 sq.m) of sound deadening for these areas.

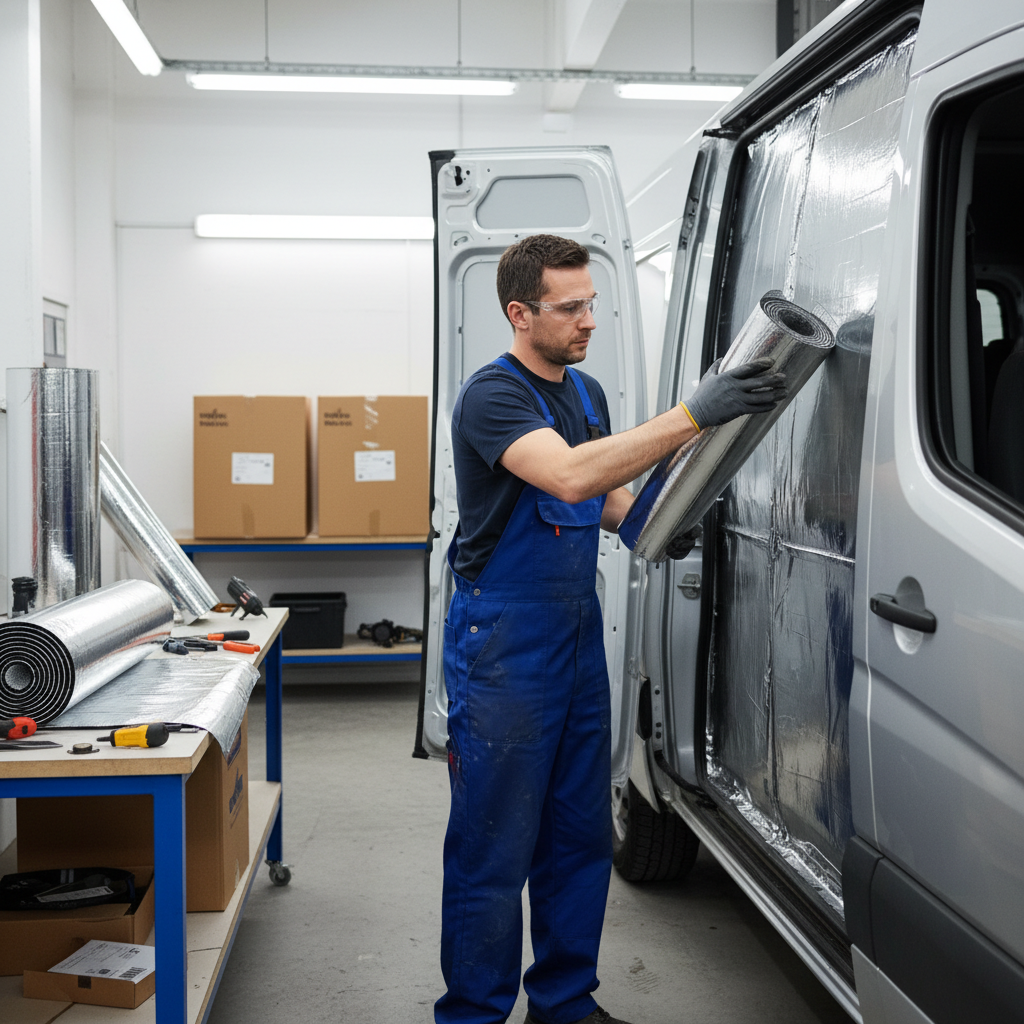

To complete the installation, add a secondary layer of high-performance 10mm insulation liner to the sides and roof. This product helps regulate temperatures inside the van, keeping it cooler in summer and warmer in winter. The dense closed-cell foam layer works in conjunction with the sound deadening layer to enhance soundproofing.

Benefits

The final outcome will be a quieter van with improved ride quality and significantly upgraded interior comfort.

Kit Includes

• 2 x 2mm black sound deadening bulk packs (7.4 sq.m)
• 4 x high-performance 10mm insulation liner rolls (20 sq.m)

Technical Specifications

• High-grade butyl construction
• Hex-embossed aluminium finish
• Black painted finish
• Soft and flexible for easy installation
• 2.0mm thickness with strong adhesive
• Low-odour quality butyl chemistry
• Reduces rattles, vibrations, and noise
• Minimises road, exhaust, engine, and transmission noise
• Temperature resistance from -40°C to +120°C
• Flammability tested for vehicle interiors (ISO 3795:1989)
• Fully water- and oil-resistant

FAQ

How do I install the insulation and sound deadening materials?

Simply peel and stick the materials to the appropriate areas of your van. Ensure the surfaces are clean and dry for optimal adhesion.

Will this kit fit my van?

This kit is designed for large vans, including popular models such as the Volkswagen T4/T5/T6 and Ford Transit LWB. Check the compatibility list above.

What are the temperature resistance levels of the materials?

The materials can withstand temperatures ranging from -40°C to +120°C, making them suitable for various climates.
