Product Overview
This premium small van insulation and sound deadening kit is designed for van owners looking to enhance the comfort and performance of their vehicles. Featuring a high-performance 10mm liner and a 2mm deadening layer, this kit is developed with input from leading van conversion companies. Transform your small van into a quieter and more enjoyable space with this comprehensive bundle.
Features and Benefits
- Easy peel & stick application for quick installation.
- Improves sound deadening and insulation in critical areas.
- Enhances ride quality and interior comfort.
- Fire retardant materials compliant with ISO 3795 standards.
- Moisture- and mould-resistant, ensuring longevity.
- High-grade butyl construction for effective soundproofing.
- Temperature regulation for a cooler interior in summer and warmer in winter.
Kit Includes
- 1 x premium 2mm butyl sound deadening mat, bulk pack (3.7 sq.m)
- 1 x premium 10mm insulation liner roll (5 sq.m)
Compatibility
This kit is suitable for the following small vans:
- Volkswagen Caddy
- Fiat Doblo
- Ford Transit Connect
- Peugeot Partner
- Citroen Berlingo
- Vauxhall Partner
- Renault Kangoo
Installation Instructions

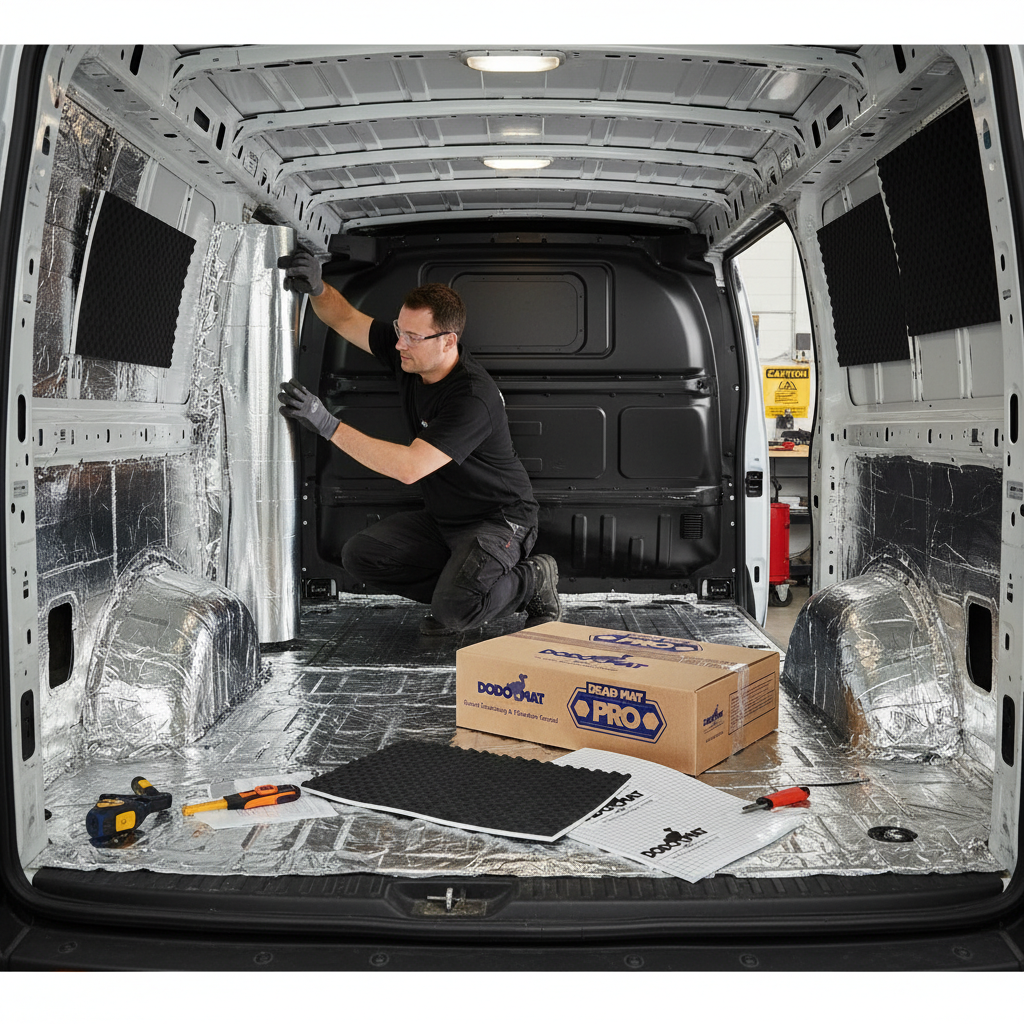

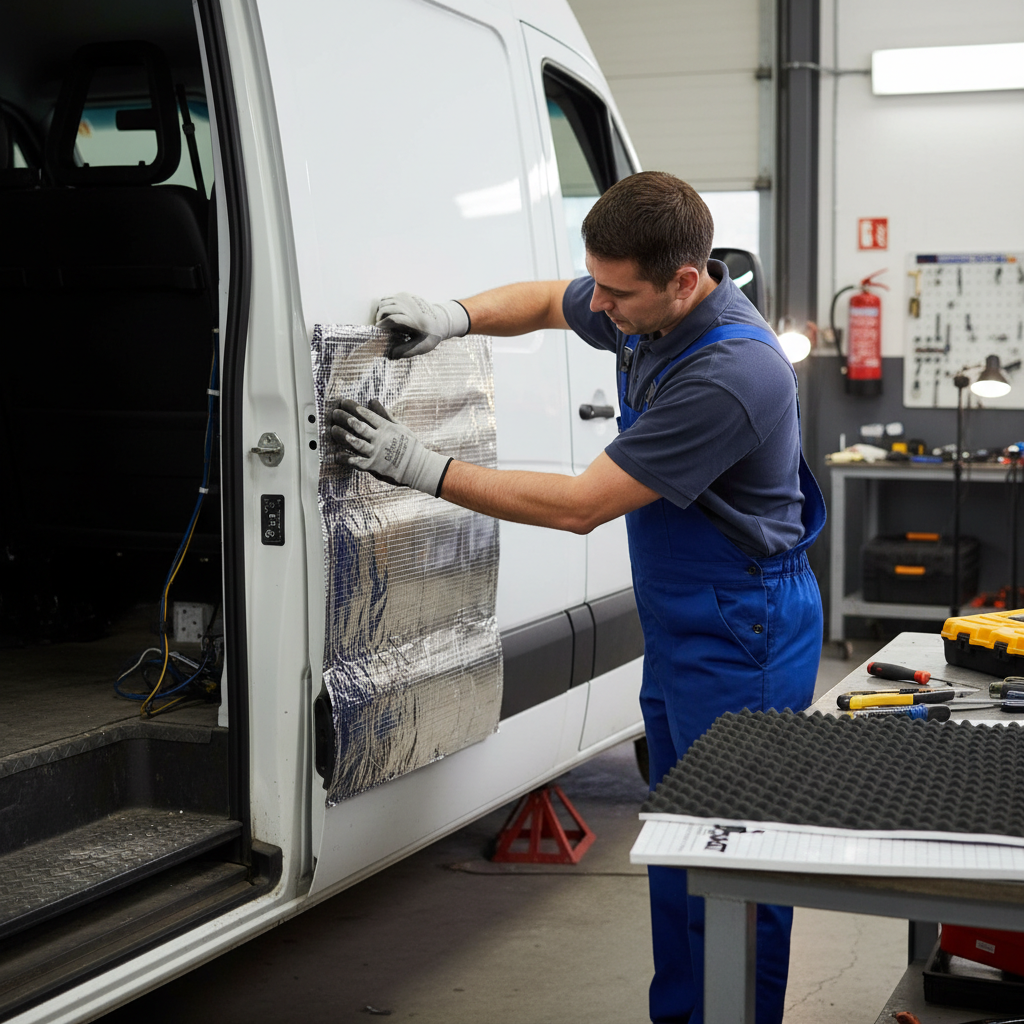

To install, begin with the 2mm sound deadening mat, applying it at approximately 50% coverage to all single-skin steel areas, including side panels, roof, wheel arches, and doors. Each small van will require approximately one bulk 40 sheet (3.7 sq.m) pack of sound deadening for optimal coverage.
Next, add the 10mm insulation liner to the sides and roof to further enhance temperature control inside the van. This secondary layer works in conjunction with the sound deadening layer to provide improved soundproofing.
Technical Specifications
| Specification | Measurement |
|---|---|
| Thickness of Sound Deadening Mat | 2.0mm |
| Thickness of Insulation Liner | 10mm |
| Pack Weight | 12.6kg |
| Coverage Area of Sound Deadening | 3.7 sq.m |
| Coverage Area of Insulation Liner | 5 sq.m |
| Temperature Resistance | -40°C to +120°C |
FAQs
Q: Can this kit be installed by a DIY enthusiast?A: Yes, the products are designed for easy application and can be installed with basic tools.
Q: Is the sound deadening mat waterproof?A: Yes, the sound deadening mat is fully water and oil resistant.
Q: How does this kit improve thermal insulation?A: The closed-cell foam in the insulation liner regulates temperature, keeping the van cooler in summer and warmer in winter.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | Product Bundle |
| SKU | D_SPS81 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready
Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
