Product Overview
This premium soundproofing material is designed for effective noise reduction and thermal insulation in vehicles. Composed of four distinct layers, it provides a comprehensive barrier against sound and heat, making it ideal for automotive applications.
Key Features
- Multilayer construction for damping, insulation, and noise barrier effectiveness.
- Soft and flexible for easy installation on various surfaces.
- Water- and moisture-resistant for durability in diverse environments.
- Strong self-adhesive layer for reliable performance over time.
Technical Specifications
| Specification | Measurement |
|---|---|
| 1st layer thickness (Butyl) | 1.2 mm |
| 2nd layer thickness (Foam Rubber) | 3.8 mm |
| 3rd layer thickness (Acoustic Membrane) | 2.5 mm |
| 4th layer (Fabric Finish) | Black Non-woven Fabric |
| Sheet size | 700 x 500 mm |
| Total thickness | 7.5 mm |
| Weight of 1 sheet | 2.16 kg |
| Weight of Pack | 26 kg |
| Recommended application temperature | +10°C to +40°C |
| Operating temperature range | -40°C to +100°C |
Applications

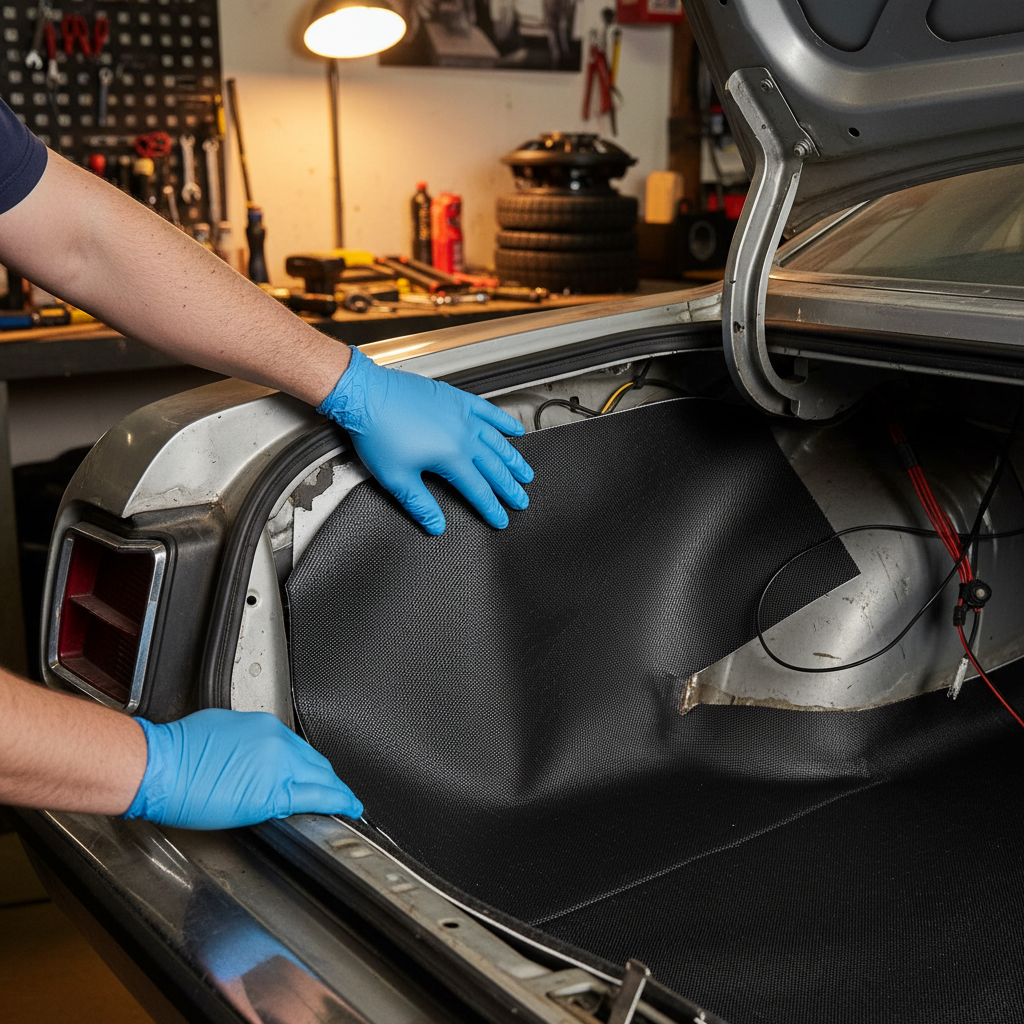

This product is particularly suited to fitting vehicle interiors, including floor and bulkhead panels, to effectively block and absorb heat and noise from engines, tyres, and exhaust systems.
FAQ
-
What surfaces can this material be applied to?
This soundproofing material can be applied to various surfaces within vehicles, including metal and plastic. -
Is this product suitable for all vehicle types?
Yes, it is designed for use in a wide range of vehicles, including cars and vans. -
How does the adhesive perform over time?
The strong self-adhesive layer ensures long-lasting performance throughout the material's lifetime.
£9.99 Flat UK Shipping
Dispatched within 1-2 working days
Quality Products
Carefully selected products
Expert Support
Call +44 1282 270214
Easy Returns
14-day returns, open and inspect first
| Product Type | CCF Noise Barrier |
| SKU | D_SPS139 |
| Weight | Contact for details |
| Availability | ✓ In Stock |
Before You Start
- Clean the surface with isopropyl alcohol or degreaser
- Ensure the surface is completely dry
- Work at room temperature (15°C+) for best adhesion
- Have a roller and utility knife ready

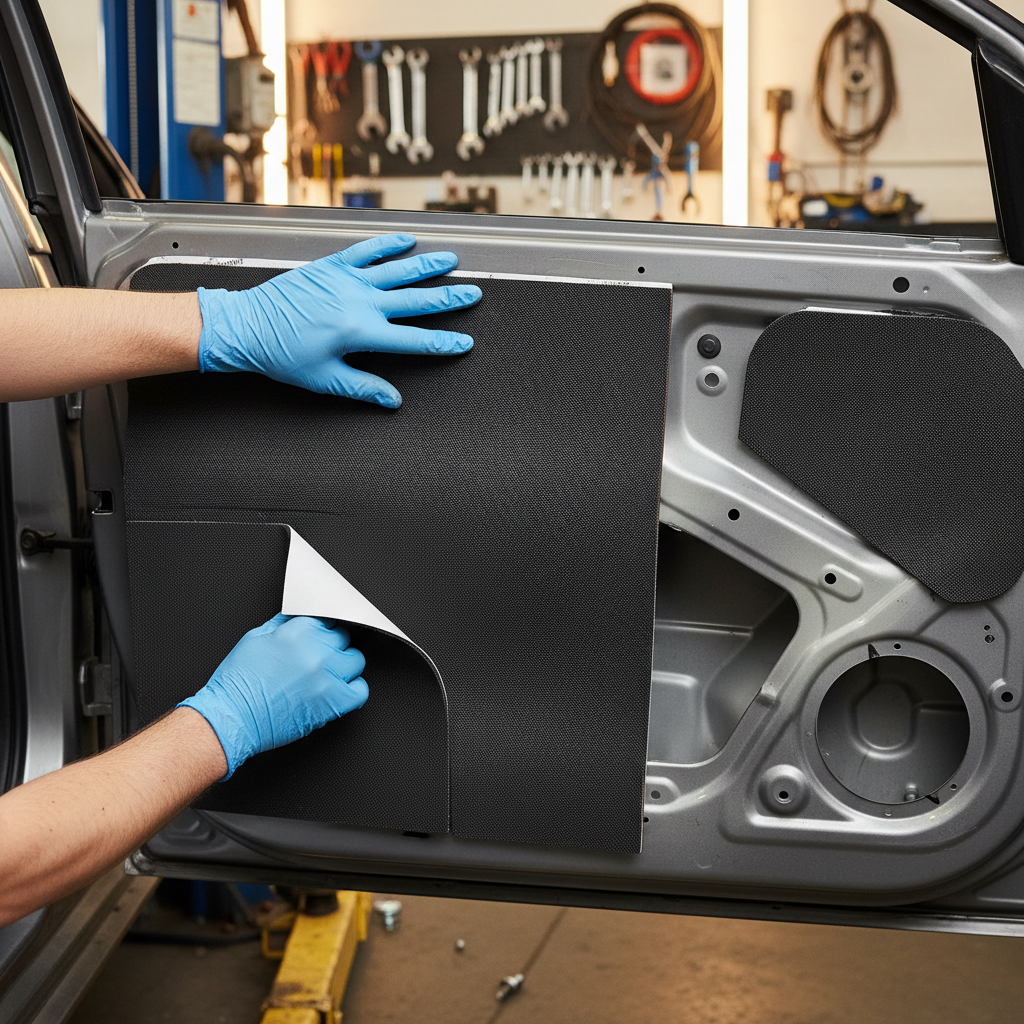

Application Steps
- Step 1: Measure and cut the material to size
- Step 2: Peel back the release paper
- Step 3: Press firmly onto the clean surface
- Step 4: Use a roller to eliminate air bubbles and ensure full contact
- Step 5: For CLD mats, overlap edges slightly for complete coverage
Pro Tips
- For CLD mats: 60-80% coverage gives 95% of the benefit
- Focus on the centre of large flat panels
- Apply CLD first, then CCF/MLV, then acoustic foam
- Use a heat gun in cold conditions to improve adhesion
Shipping
- £9.99 flat-rate shipping on all UK orders
- Dispatched within 1-2 working days (order before 2pm, Mon-Fri)
- 3-6 working days tracked delivery
- Full tracking provided via email
Returns
- 14-day returns on any order, for any reason
- You can open and inspect before you decide
- Contact us before returning: sales@soundproofingshop.co.uk
- Refunds processed within 5 working days
For damaged or faulty items, contact us immediately — we'll arrange a free replacement or full refund.
Frequently Asked Questions
Everything you need to know about sound deadening
How much sound deadening material do I need?
Coverage depends on your vehicle and goals. For basic noise reduction, cover 25-40% of each panel. For maximum results (audio builds, full insulation), aim for 60-80% coverage. Our team can advise on exact quantities for your vehicle — just get in touch.
Can I install sound deadening myself?
Absolutely. All our products are designed for DIY installation with peel-and-stick application. You'll need basic tools — a roller, utility knife, and clean surface. Most door panels take 30-60 minutes. We include installation tips with every order.
What's the difference between CLD, CCF and MLV?
CLD (Constrained Layer Damping) mats reduce vibration and panel resonance — the foundation layer. CCF (Closed Cell Foam) blocks airborne noise and adds thermal insulation. MLV (Mass Loaded Vinyl) is a dense barrier that blocks sound transmission. For best results, use all three in layers.
Do you offer trade or bulk discounts?
Yes! We offer competitive pricing for trade customers, van conversion businesses, and bulk buyers. Contact us with your requirements for a custom quote. Bundle deals are also available on our website.
How fast is delivery?
Orders placed before 2pm are dispatched within 1-2 working days. Once dispatched, transit typically takes a further 2-4 working days. Total delivery time is usually 3-6 working days from when you place your order. Delivery is a flat £9.99 to any UK address. We ship nationwide across the UK.
Can I return products if they're not suitable?
Yes, we offer a 14-day return policy on any order, for any reason, and you may open and inspect it first. Please contact our team to arrange a return. Return postage is yours unless the item is faulty. Items cut to your specification are non-returnable unless faulty.
Need Help Choosing the Right Product?
Our sound deadening experts are here to help. Whether you're doing a full van build or a simple door upgrade, we'll recommend the perfect solution for your project.
